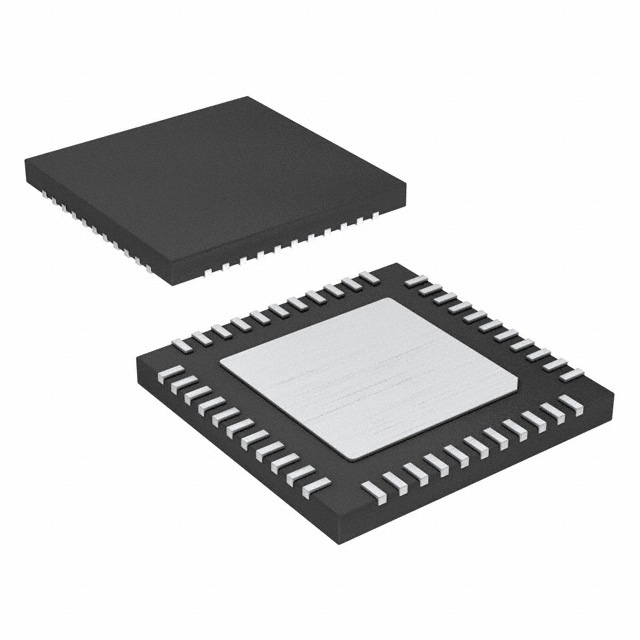

ATMEGA1284RZAP-MU
IC RF TXRX+MCU 802.15.4 44QFN
| Part Description |
IC RF TxRx + MCU 802.15.4 6LoWPAN, Zigbee® 2.4GHz 44-VFQFN Exposed Pad |
|---|---|
| Quantity | 1,717 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | Microchip Technology |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 52 Weeks |
| Datasheet |
Specifications
| Part Package | 44-VFQFN Exposed Pad |
|---|---|
| Device Package | 44-VQFN (7×7) |
| Mounting Method | Surface Mount |
| Voltage | 1.8V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx + MCU |
| RF Family/Standard: | 802.15.4 |
| Protocol: | 6LoWPAN, Zigbee® |
| Modulation: | O-QPSK |
| Frequency: | 2.4GHz |
| Data Rate (Max): | 250kbps |
| Power – Output: | 3dBm |
| Sensitivity: | -101dBm |
| Memory Size: | 128kB Flash, 4kB EEPROM, 16kB SRAM |
| Serial Interfaces: | I2C, JTAG, SPI, USART |
| GPIO: | 32 |
| Voltage – Supply: | 1.8V ~ 3.6V |
| Current – Receiving: | 15.5mA |
| Current – Transmitting: | 9.5mA ~ 16.5mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 5A002A1 |
| HTS Code | 8542.31.0001 |
