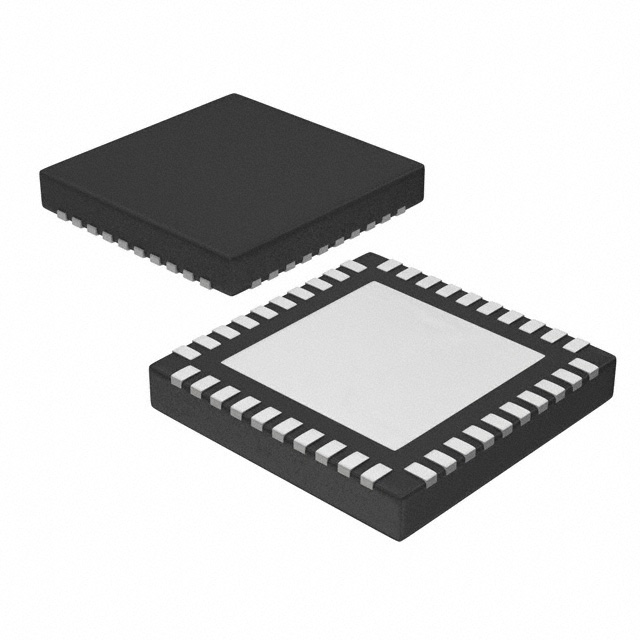

CC2531F128RHAT
IC RF TXRX+MCU 802.15.4 40VFQFN
| Part Description |
IC RF TxRx + MCU 802.15.4 Zigbee® 2.4GHz 40-VFQFN Exposed Pad |
|---|---|
| Quantity | 909 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 20 Weeks |
| Datasheet |
Specifications
| Part Package | 40-VFQFN Exposed Pad |
|---|---|
| Device Package | 40-VQFN (6×6) |
| Mounting Method | Surface Mount |
| Voltage | 2V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C |
| Type: | TxRx + MCU |
| RF Family/Standard: | 802.15.4 |
| Protocol: | Zigbee® |
| Frequency: | 2.4GHz |
| Data Rate (Max): | 250kbps |
| Power – Output: | 4.5dBm |
| Sensitivity: | -97dBm |
| Memory Size: | 128kB Flash, 8kB RAM |
| Serial Interfaces: | SPI, USART, USB |
| GPIO: | 21 |
| Voltage – Supply: | 2V ~ 3.6V |
| Current – Receiving: | 20.5mA ~ 24.3mA |
| Current – Transmitting: | 28.7mA ~ 33.5mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 5A992C |
| HTS Code | 8542.39.0001 |
