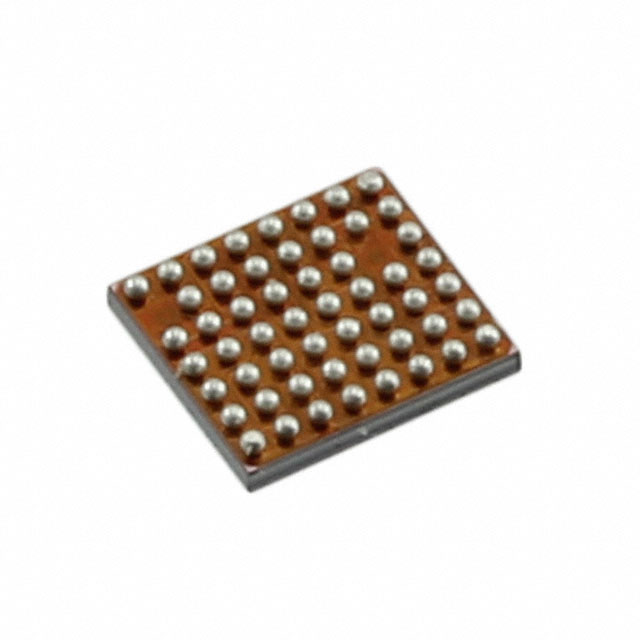

CC2560ANYFVT
IC RF TXRX BLUETOOTH 54BGA
| Part Description |
IC RF TxRx Only Bluetooth Bluetooth v4.0 2.4GHz 54-UFBGA, DSBGA |
|---|---|
| Quantity | 1,200 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Not For New Designs |
| Manufacturer Standard Lead Time | 12 Weeks |
Specifications
| Part Package | 54-UFBGA, DSBGA |
|---|---|
| Device Package | 54-DSBGA (2.93×3.27) |
| Mounting Method | Surface Mount |
| Voltage | 2.2V ~ 4.8V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx Only |
| RF Family/Standard: | Bluetooth |
| Protocol: | Bluetooth v4.0 |
| Modulation: | GFSK, GMSK |
| Frequency: | 2.4GHz |
| Data Rate (Max): | 4Mbps |
| Power – Output: | 12dBm |
| Sensitivity: | -95dBm |
| Serial Interfaces: | I2S, UART |
| Voltage – Supply: | 2.2V ~ 4.8V |
| Current – Receiving: | 40.5mA ~ 41.2mA |
| Current – Transmitting: | 40.5mA ~ 41.2mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | 5A992C |
| HTS Code | 8542.31.0001 |
