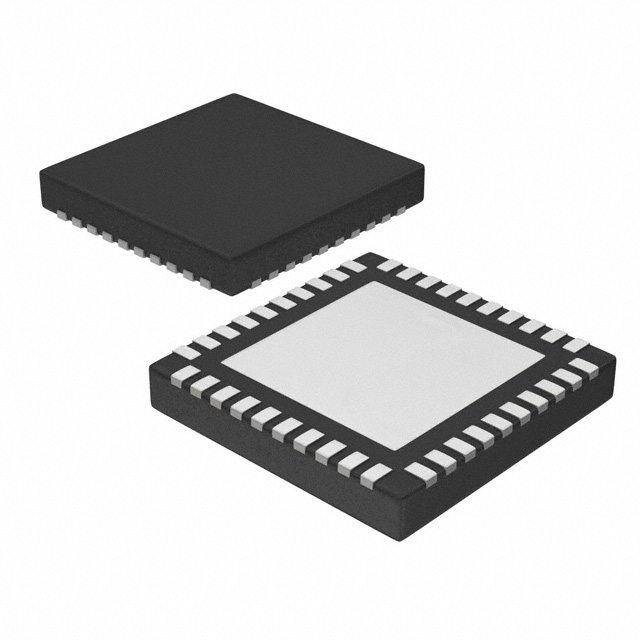

CC8520RHAR
IC RF TXRX+MCU ISM>1GHZ 40VFQFN
| Part Description |
IC RF TxRx + MCU General ISM > 1GHz 2.4GHz 40-VFQFN Exposed Pad |
|---|---|
| Quantity | 415 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 6 Weeks |
| Datasheet |
Specifications
| Part Package | 40-VFQFN Exposed Pad |
|---|---|
| Device Package | 40-VQFN (6×6) |
| Mounting Method | Surface Mount |
| Voltage | 2V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx + MCU |
| RF Family/Standard: | General ISM > 1GHz |
| Modulation: | 2FSK, 8FSK |
| Frequency: | 2.4GHz |
| Data Rate (Max): | 5Mbps |
| Power – Output: | 11dBm |
| Sensitivity: | -90dBm |
| Serial Interfaces: | I2C, I2S, SPI |
| GPIO: | 15 |
| Voltage – Supply: | 2V ~ 3.6V |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
