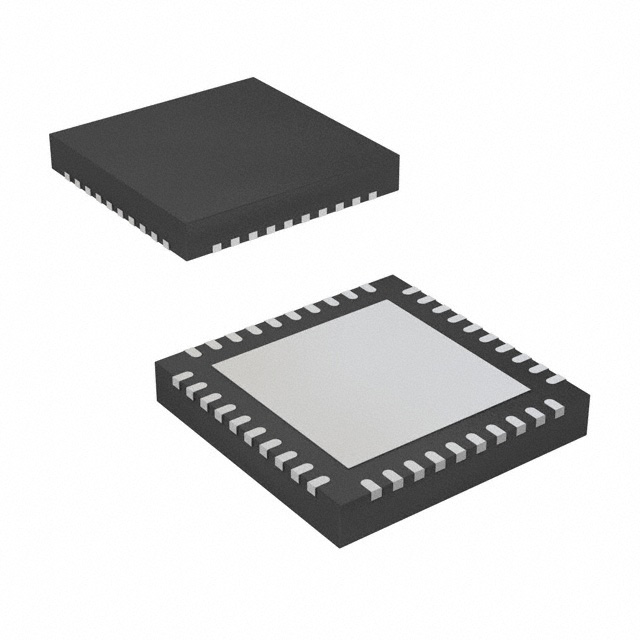

DA14583-01F01AT2
IC RF TXRX+MCU BLUETOOTH 40VFQFN
| Part Description |
IC RF TxRx + MCU Bluetooth Bluetooth v4.1 2.4GHz 40-VFQFN Exposed Pad |
|---|---|
| Quantity | 604 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Not For New Designs |
| Manufacturer Standard Lead Time | 24 Weeks |
| Datasheet |
Specifications
| Part Package | 40-VFQFN Exposed Pad |
|---|---|
| Device Package | 40-QFN (5×5) |
| Mounting Method | Surface Mount |
| Voltage | 2.35V ~ 3.3V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx + MCU |
| RF Family/Standard: | Bluetooth |
| Protocol: | Bluetooth v4.1 |
| Frequency: | 2.4GHz |
| Power – Output: | -1dBm |
| Sensitivity: | -93dBm |
| Memory Size: | 1Mb Flash, 32kB OTP, 84kB ROM, 50kB SRAM |
| Serial Interfaces: | I2C, SPI, UART |
| GPIO: | 24 |
| Voltage – Supply: | 2.35V ~ 3.3V |
| Current – Receiving: | 3.7mA |
| Current – Transmitting: | 3.4mA |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 5A992C |
| HTS Code | 8542.39.0001 |
