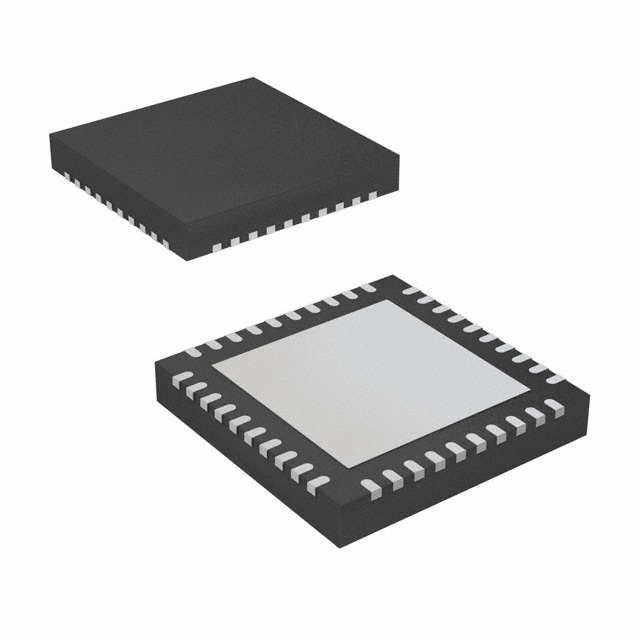

JN5164/001,515
IC RF TXRX+MCU 802.15.4 40VFQFN
| Part Description |
IC RF TxRx + MCU 802.15.4 ZigbeePRO® 2.4GHz 40-VFQFN Exposed Pad |
|---|---|
| Quantity | 354 Available (as of May 6, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 13 Weeks |
| Datasheet |
Specifications
| Part Package | 40-VFQFN Exposed Pad |
|---|---|
| Device Package | 40-HVQFN (6×6) |
| Mounting Method | Surface Mount |
| Voltage | 2V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C |
| Type: | TxRx + MCU |
| RF Family/Standard: | 802.15.4 |
| Protocol: | ZigbeePRO® |
| Modulation: | O-QPSK |
| Frequency: | 2.4GHz |
| Data Rate (Max): | 1Mbps |
| Power – Output: | 2.5dBm |
| Sensitivity: | -96dBm |
| Memory Size: | 160kB Flash, 4kB EEPROM, 32kB RAM |
| Serial Interfaces: | I2C, JTAG, SPI, UART |
| GPIO: | 20 |
| Voltage – Supply: | 2V ~ 3.6V |
| Current – Receiving: | 17mA |
| Current – Transmitting: | 15.3mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 5A992C |
| HTS Code | 8542.31.0001 |
