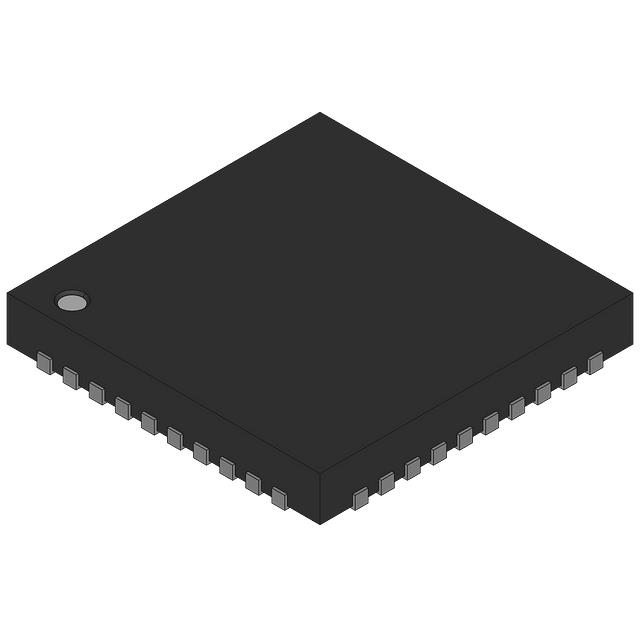

JN5188THN/001Z
JN5188 - HIGH PERFORMANCE AND UL
| Part Description |
IC RF TxRx + MCU 802.15.4 Zigbee® 2.4GHz 40-VFQFN Exposed Pad |
|---|---|
| Quantity | 295 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | NXP Semiconductors |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 40-VFQFN Exposed Pad |
|---|---|
| Device Package | 40-HVQFN (6×6) |
| Mounting Method | Surface Mount |
| Voltage | 1.9V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Type: | TxRx + MCU |
| RF Family/Standard: | 802.15.4 |
| Protocol: | Zigbee® |
| Frequency: | 2.4GHz |
| Power – Output: | 11.2dBm |
| Sensitivity: | -101.3dBm |
| Memory Size: | 640kB Flash, 152kB SRAM |
| Serial Interfaces: | I2C, SPI, PWM, UART |
| GPIO: | 22 |
| Voltage – Supply: | 1.9V ~ 3.6V |
| Current – Receiving: | 4.3mA |
| Current – Transmitting: | 7.36mA ~ 20.28mA |
Environmental
| REACH Compliance | REACH not applicable |
|---|---|
| RoHS Compliance | RoHS non-compliant |
| Moisture Sensitivity Level | N/A |
| ECCN | 5A992 |
| HTS Code | 8542.31.0001 |
