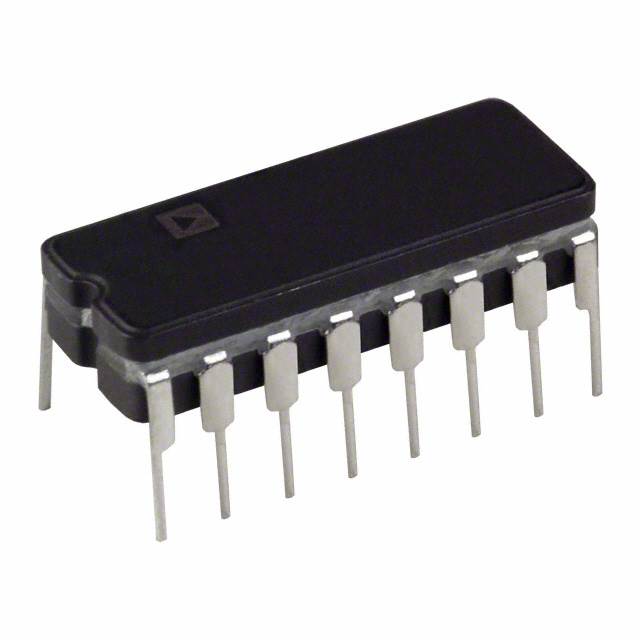

AD7503JQ
IC MUX 8:1 300OHM 16CERDIP
| Part Description |
1 Circuit IC Switch 8:1 300Ohm 16-CERDIP |
|---|---|
| Quantity | 1,088 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 16-CDIP (0.300″”, 7.62mm) |
|---|---|
| Device Package | 16-CERDIP |
| Mounting Method | Through Hole |
| Operating Temperature | – |
| Multiplexer/Demultiplexer Circuit: | 8:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 300Ohm |
| Channel-to-Channel Matching (ΔRon): | 12Ohm |
| Voltage – Supply, Dual (V±): | ±15V |
| Switch Time (Ton, Toff) (Max): | 800ns, 800ns (Typ) |
| Channel Capacitance (CS(off), CD(off)): | 5pF, 30pF |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
