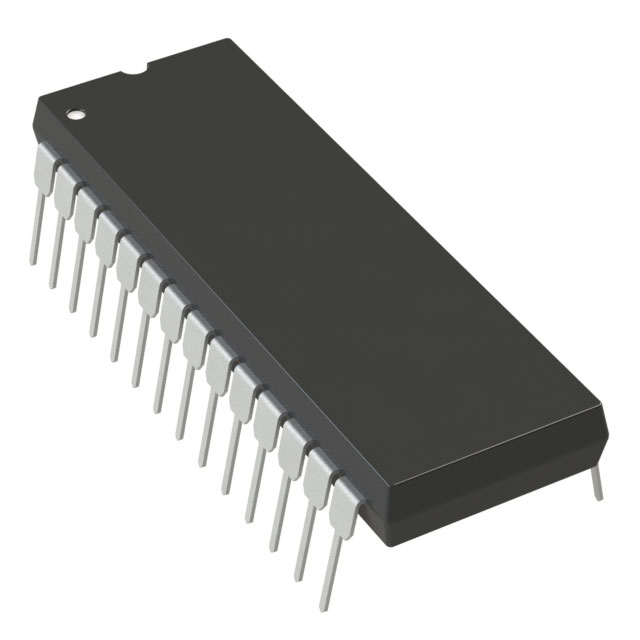

AD7506JN
IC MUX 16:1 450OHM 28DIP
| Part Description |
1 Circuit IC Switch 16:1 450Ohm 28-PDIP |
|---|---|
| Quantity | 306 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 28-DIP (0.600″”, 15.24mm) |
|---|---|
| Device Package | 28-PDIP |
| Mounting Method | Through Hole |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Multiplexer/Demultiplexer Circuit: | 16:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 450Ohm |
| Channel-to-Channel Matching (ΔRon): | 18Ohm |
| Voltage – Supply, Dual (V±): | ±15V |
| Switch Time (Ton, Toff) (Max): | 1.5µs, 1µs |
| Channel Capacitance (CS(off), CD(off)): | 5pF, 40pF |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
