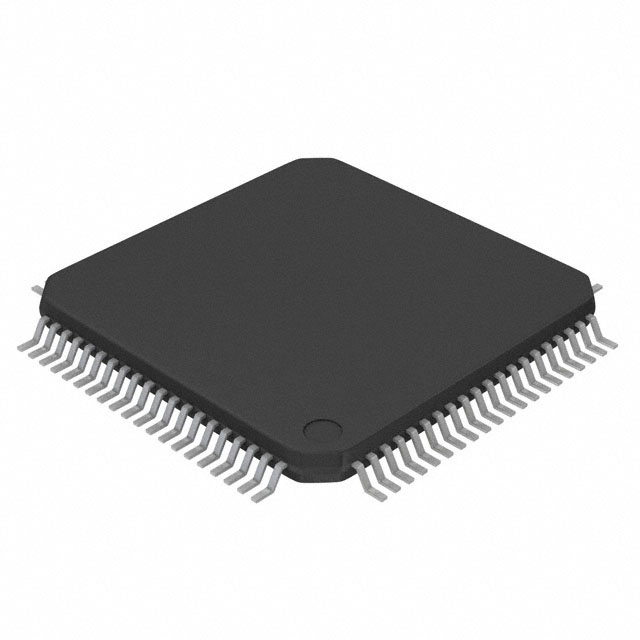

A40MX02-2VQ80I

The A40MX02-2VQ80I is a compact MX series Field Programmable Gate Array (FPGA) from Microchip Technology, designed for industrial-grade embedded logic applications. It provides a balanced resource set—including 295 logic elements and 57 general-purpose I/Os—in a space-efficient 80-TQFP (14 × 14 mm) surface-mount package.

With a wide supply range of 3 V to 5.5 V and an operating temperature range of −40 °C to 85 °C, this FPGA is suited to designs that require reliable logic integration and robust environmental margins in industrial environments.

Key Features

• Core Logic  295 logic elements and approximately 3,000 gates provide discrete combinational and sequential resources for glue logic, state machines, and small custom datapaths.
• I/O Capacity  57 general-purpose I/O pins support interfacing to sensors, switches, and peripheral devices in compact systems.
• Package and Mounting  80-TQFP package (supplier device package: 80-VQFP, 14×14 mm) in a surface-mount form factor for PCB designs with constrained board area.
• Power Supply  Flexible supply range from 3 V to 5.5 V to support a variety of system voltage domains.
• Industrial Temperature Range  Rated for −40 °C to 85 °C operation to meet temperature demands of industrial applications.
• Compliance  RoHS compliant for environmental and regulatory requirements.

Typical Applications

• Industrial Control  Use the FPGA for control logic, timing, and I/O aggregation in industrial equipment where the −40 °C to 85 °C range and industrial grade are required.
• Embedded I/O Expansion  Add programmable I/O handling and protocol translation for compact embedded systems using the 57 available I/Os.
• Prototyping and Low-Complexity FPGA Tasks  Leverage the 295 logic elements and 3,000 gates for rapid prototyping of state machines, custom peripherals, and glue logic in development platforms.

Unique Advantages

• Compact, industry-ready package: The 80-TQFP (14×14 mm) surface-mount package enables high-density board layouts while meeting industrial operating temperatures.
• Balanced logic and I/O resources: 295 logic elements paired with 57 I/Os provide a practical balance for control-oriented and interface-focused designs.
• Wide supply tolerance: Support for 3 V to 5.5 V supplies simplifies integration into systems with varying voltage domains.
• Regulatory compliance: RoHS compliance supports environmentally conscious designs and supply-chain requirements.
• Manufacturer backing: Produced by Microchip Technology, offering a known supplier for procurement and lifecycle planning.

Why Choose A40MX02-2VQ80I?

The A40MX02-2VQ80I positions itself as a practical, industrial-grade FPGA option where compact size, a moderate logic count, and a healthy complement of I/Os are required. Its operating temperature range and flexible supply voltage make it suitable for embedded and industrial applications that need dependable logic integration without a large silicon footprint.

Designers targeting control, interface, and prototyping tasks will find the A40MX02-2VQ80I offers straightforward integration and procurement from a recognized manufacturer, enabling predictable deployment in space-constrained and temperature-challenging environments.

Request a quote or submit an inquiry to receive pricing and availability information for the A40MX02-2VQ80I.
