A40MX02-PL68

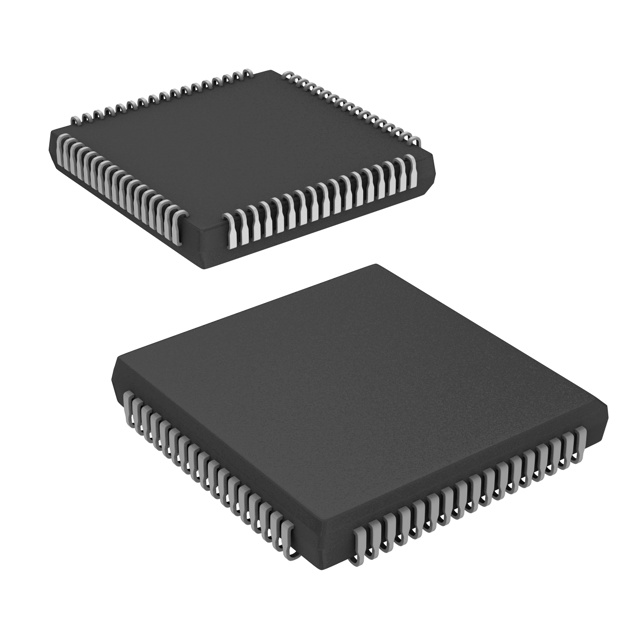

The A40MX02-PL68 is a field programmable gate array (FPGA) IC from Microchip Technology in a 68-lead LCC (J-lead) surface-mount package. It provides 295 logic elements (LEs), approximately 3,000 gates of logic capacity and 57 general-purpose I/O pins, supporting single-supply operation across 3 V to 5.25 V for commercial-grade designs.

This device is suited for compact, low-to-moderate complexity logic integration where a small-package FPGA with a defined I/O count and commercial temperature range (0 °C to 70 °C) is required.

Key Features

• Core Logic 295 logic elements and roughly 3,000 gates provide programmable combinational and simple sequential logic resources for glue logic, protocol bridging, or custom control functions.
• On-Chip Memory No on-chip RAM (0 total RAM bits), enabling predictable LUT/logic-only implementations for designs that do not require embedded memory.
• I/O 57 general-purpose I/O pins available for external device interfacing and signal routing in a compact footprint.
• Power Wide supply input range of 3 V to 5.25 V to support common commercial logic voltage domains.
• Package and Mounting 68-lead LCC (J-lead) surface-mount package; supplier device package listed as 68-PLCC (24.23 × 24.23 mm) for PCB footprint planning.
• Grade and Temperature Commercial grade with an operating temperature range of 0 °C to 70 °C, suitable for standard consumer and commercial electronic environments.
• Regulatory Compliance RoHS compliant to meet common environmental and manufacturing requirements.

Typical Applications

• Glue Logic and Interface Bridging Implement custom signal conditioning, bus interfacing or protocol translation using the device's 57 I/O pins and 295 logic elements.
• Compact Control Functions Replace small discrete logic networks or CPLDs in commercial products where a surface-mount 68-lead package and 3 V–5.25 V supply are a match.
• Prototype and Proof-of-Concept Designs Use the device for small-scale prototyping of control/logic functions that require programmable routing and up to 57 external signals.

Unique Advantages

• Right-sized Logic Capacity: 295 logic elements and ~3,000 gates offer a balance between capability and simplicity for modest logic designs, reducing over-specification and BOM cost.
• Flexible Supply Range: Operation from 3 V to 5.25 V accommodates common commercial voltage domains without additional level-shifting for many applications.
• Ample I/O in a Compact Package: 57 I/O pins in a 68-lead LCC/PLCC package allow dense signal integration while maintaining a relatively small PCB footprint.
• Surface-Mount Packaging: The 68-LCC (J-lead) surface-mount form factor simplifies automated assembly and placement in high-volume commercial production.
• RoHS Compliant: Meets standard environmental compliance expectations for modern electronics manufacturing.

Why Choose A40MX02-PL68?

The A40MX02-PL68 positions itself as a compact, commercial-grade FPGA option for designers who need programmable logic with a defined I/O count and modest logic capacity. Its combination of 295 logic elements, 57 I/Os, and a broad 3 V–5.25 V supply range makes it suitable for replacing small discrete logic networks or implementing dedicated interface and control functions.

For teams targeting commercial electronic designs with standard temperature ranges and surface-mount assembly, this Microchip FPGA delivers predictable logic resources, a compact PLCC/LCC package, and RoHS compliance to support manufacturability and lifecycle planning.

Request a quote or submit a product inquiry to get pricing and availability for the A40MX02-PL68. Include your quantity and required lead time to receive a tailored response.
