A40MX04-2PLG84

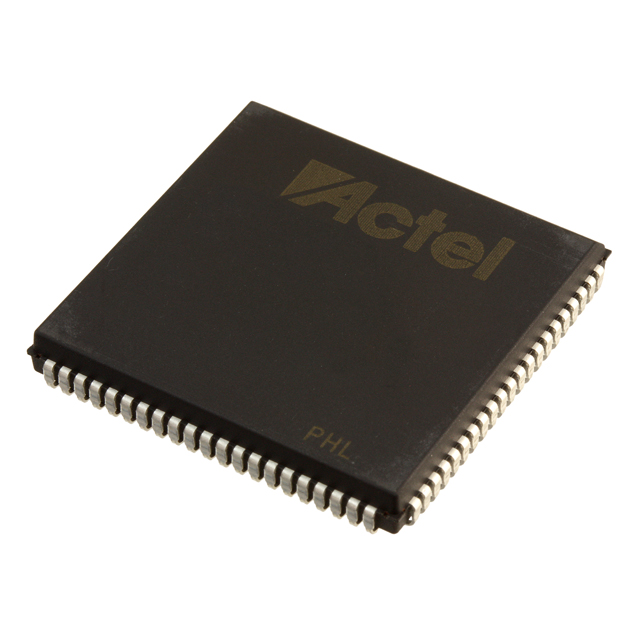

The A40MX04-2PLG84 is an MX family Field Programmable Gate Array (FPGA) offered in an 84‑lead LCC (J‑Lead) surface‑mount package. It provides 547 logic elements (CLBs), approximately 6,000 gates and 69 user I/Os for implementing medium‑complexity digital functions.

Designed for commercial applications, this device operates from 3 V to 5.25 V and is rated for 0 °C to 70 °C. Its compact 84‑PLCC footprint (29.31×29.31 mm) and RoHS compliance make it suitable for standard board assembly and commercial electronic product lines.

Key Features

• Logic Capacity 547 logic elements (CLBs) and approximately 6,000 gates for implementing combinational and sequential logic in medium‑complexity designs.
• I/O and Package 69 user I/Os in an 84‑lead LCC (J‑Lead) surface‑mount package; supplier device package specified as 84‑PLCC with a 29.31×29.31 mm footprint for compact PCB layouts.
• Power Voltage supply range of 3 V to 5.25 V to support common digital power rails.
• Operating Conditions Commercial operating temperature range from 0 °C to 70 °C.
• On‑Chip Memory Total RAM bits specified as 0.
• Mounting Surface mount package compatible with automated PCB assembly processes.
• Compliance RoHS compliant.

Typical Applications

• Consumer Electronics Implement control logic and peripheral interfacing in compact consumer devices requiring a commercial‑grade FPGA.
• Communications Equipment Provide glue logic, protocol bridging, or custom I/O handling where a moderate number of I/Os and logic elements are required.
• Test and Measurement Drive custom signal routing, timing control, and interface adaptation in benchtop or rack‑mounted instruments.
• Prototyping and Development Evaluate and validate medium‑complexity FPGA designs in a compact PLCC package for board‑level integration.

Unique Advantages

• Balanced Logic Density 547 logic elements and ~6,000 gates offer a clear mid‑range capacity for implementing a variety of logic functions without excessive overhead.
• Generous I/O Count 69 user I/Os provide flexible interfacing options for peripherals, sensors, and external logic blocks.
• Wide Supply Compatibility 3 V to 5.25 V supply range supports common digital voltage domains, simplifying power‑rail planning.
• Compact PLCC Package 84‑LCC (J‑Lead) surface‑mount package with a 29.31×29.31 mm footprint enables space‑efficient board layouts and automated assembly.
• Commercial Readiness Specified operating range of 0 °C to 70 °C and RoHS compliance meet common commercial product requirements.

Why Choose A40MX04-2PLG84?

The A40MX04-2PLG84 positions itself as a practical, commercial‑grade FPGA for designers needing mid‑range logic capacity with a substantial I/O complement in a space‑efficient PLCC package. Its supply voltage flexibility and surface‑mount form factor ease integration into a wide array of commercial electronic systems.

This part is well suited to teams building consumer, communications, or test equipment where a reliable, RoHS‑compliant FPGA with 547 logic elements and 69 I/Os can simplify board design and accelerate time to prototype and production.

Request a quote or submit an inquiry to purchase the A40MX04-2PLG84 and include your quantity and delivery requirements for prompt assistance.
