A40MX04-PL68I

The A40MX04-PL68I is a field programmable gate array (FPGA) IC offering 547 logic elements and 6,000 gates with 57 user I/O. Packaged in a 68-LCC (J-Lead) surface-mount package, it is specified for industrial operation.

This device operates from a 3 V to 5.5 V supply range and is rated for an operating temperature range of -40 °C to 85 °C, making it suitable for industrial embedded designs that require configurable logic and robust environmental tolerance.

Key Features

• Logic Capacity — 547 logic elements and 6,000 gates deliver the programmable combinational and sequential resources needed for mid-density logic implementations.
• I/O — 57 user I/O pins provide flexible connectivity for interfacing with peripherals and external circuits.
• Power — Supports a wide supply voltage range from 3 V to 5.5 V to accommodate varied embedded system power rails.

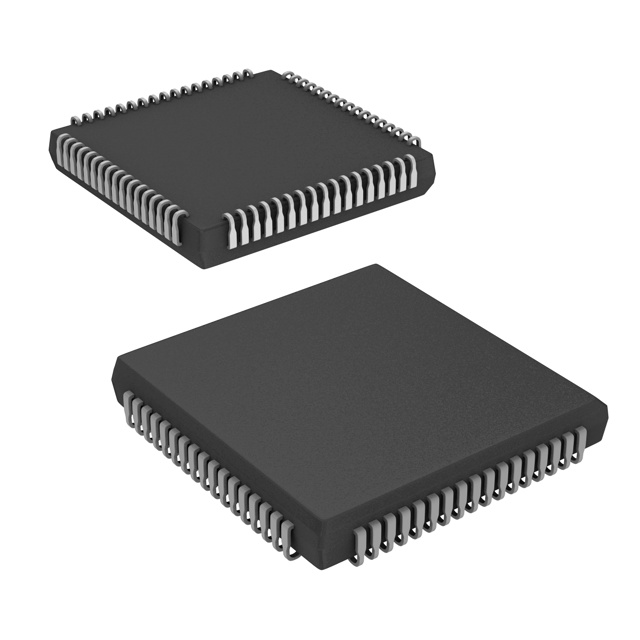

• Package & Mounting — 68-LCC (J-Lead) package, supplied as a 68-PLCC 24.23 × 24.23 mm device, optimized for surface-mount PCB assembly.
• Temperature & Grade — Industrial grade with an operating temperature range of -40 °C to 85 °C for deployment in demanding environments.
• Environmental Compliance — RoHS compliant.

Unique Advantages

• Industrial temperature rating: Specified -40 °C to 85 °C for consistent operation across typical industrial environments.
• Mid-density programmable logic: 547 logic elements and 6,000 gates provide a balance of integration and predictability for control and glue-logic functions.
• Flexible I/O balance: 57 user I/O pins enable multiple peripheral connections without excessive package overhead.
• Wide supply window: 3 V to 5.5 V operation accommodates a range of embedded power architectures.
• Surface-mount PLCC package: 68-LCC (J-Lead) / 68-PLCC 24.23 × 24.23 mm footprint supports standard PCB assembly processes.
• Regulatory readiness: RoHS compliance helps meet environmental and manufacturing requirements.

Why Choose A40MX04-PL68I?

The A40MX04-PL68I combines a defined mid-density logic fabric (547 logic elements, 6,000 gates) with a practical I/O count and a wide supply voltage range, all in an industrial-grade, surface-mount PLCC package. These attributes make it a clear choice for engineers designing configurable logic into industrial embedded systems where predictable resources, environmental tolerance, and package compatibility are key selection criteria.

Its RoHS compliance and established package footprint simplify integration into existing production flows while providing the programmable flexibility typical of FPGA-based solutions.

Request a quote or submit an inquiry to receive pricing and availability details for the A40MX04-PL68I.
