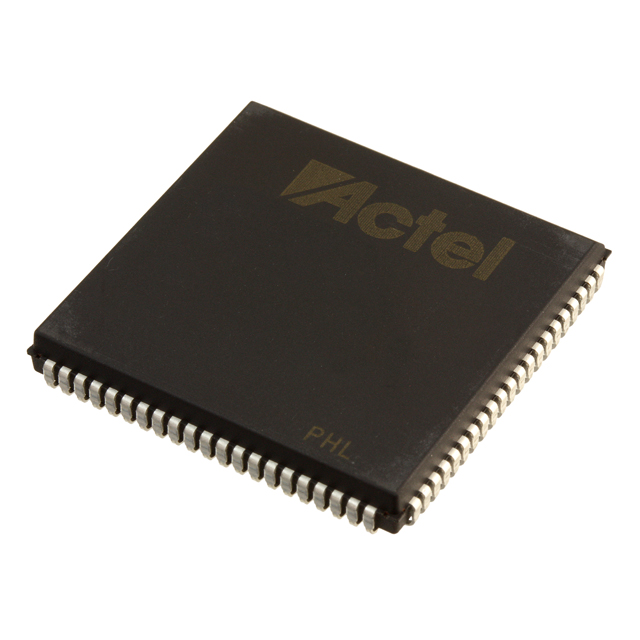

A40MX04-PLG84A

The A40MX04-PLG84A is an MX-series Field Programmable Gate Array (FPGA) from Microchip Technology designed for robust embedded and automotive applications. The device provides 547 logic elements and approximately 6,000 gates with 69 general-purpose I/O pins, enabling compact implementation of custom digital functions where environmental robustness and flexible I/O are required.

Key value propositions include an automotive-grade qualification (AEC-Q100), a wide supply voltage range, and an extended operating temperature range—features that support deployment in demanding environments while simplifying BOM and system integration.

Key Features

• Core Logic  547 logic elements and roughly 6,000 gates provide the programmable fabric for custom digital logic implementation.
• I/O Capacity  69 I/O pins support flexible interfacing with sensors, actuators, and peripheral devices in embedded systems.
• Power  Wide supply range from 3 V to 5.25 V enables compatibility with common system rails and simplifies power supply design.
• Package & Mounting  84-LCC (J-Lead) package with surface-mount mounting; supplier package dimensions listed as 84-PLCC (29.31 × 29.31 mm) for board-level planning.
• Automotive Qualification  AEC-Q100 qualification and an automotive grade designation support use in automotive and other harsh-environment applications.
• Environmental Range  Operating temperature from −40°C to 125°C provides thermal margin for wide-ranging deployment scenarios.
• Regulatory Compliance  RoHS compliant for environmental and regulatory conformance in manufacturing.

Typical Applications

• Automotive Control Modules  AEC-Q100 qualification and −40°C to 125°C operation make this FPGA suitable for control and interface functions in automotive electronic modules.
• Rugged Embedded Electronics  Wide temperature range and surface-mount 84-LCC package support compact, board-level integration in harsh or space-constrained systems.
• Custom I/O and Interface Logic  69 I/Os and flexible supply range allow implementation of bespoke signal adaptation and protocol bridging in embedded designs.

Unique Advantages

• AEC-Q100 Qualified:  Automotive qualification provides documented component-level reliability for use in automotive applications.
• Compact, Practical Logic Capacity:  547 logic elements and ~6,000 gates deliver a balance of programmable logic for control and interface tasks without excessive footprint.
• Flexible I/O Count:  69 I/Os enable direct connections to a variety of peripherals and system interfaces, reducing external glue logic.
• Wide Supply Voltage:  3 V to 5.25 V operation simplifies integration with common system power domains.
• Extended Temperature Range:  Operation from −40°C to 125°C supports deployments across automotive and other thermally challenging environments.
• RoHS Compliant:  Meets environmental compliance requirements for modern manufacturing processes.

Why Choose A40MX04-PLG84A?

The A40MX04-PLG84A delivers a focused mix of programmable logic capacity, flexible I/O, and automotive-grade robustness from Microchip Technology. It is well suited for designers who need a compact FPGA with documented automotive qualification, broad supply voltage tolerance, and an extended operating temperature window.

For projects requiring dependable, board-level FPGA integration in demanding conditions, this device offers a concise, verifiable feature set that supports reliable system designs and streamlined BOMs.

Request a quote or submit an inquiry to receive pricing, lead-time, and availability information for A40MX04-PLG84A. Our team will respond with the details you need to evaluate this device for your design.
