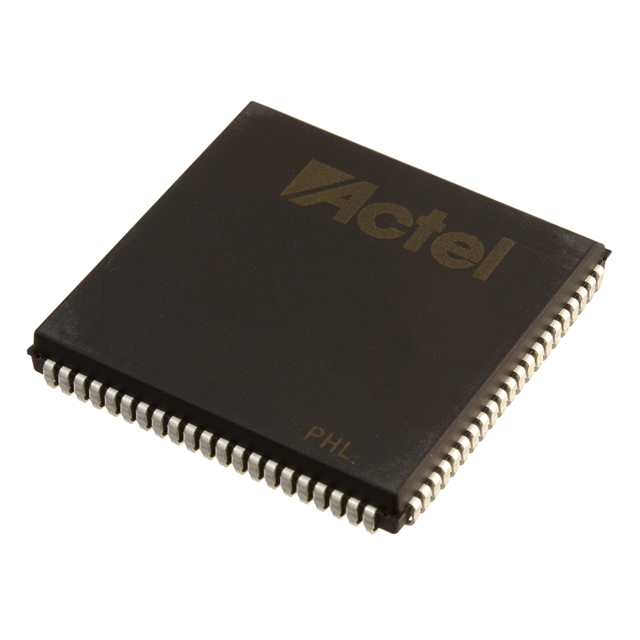

A42MX16-1PL84

The A42MX16-1PL84 is a commercial-grade MX family FPGA in an 84-LCC (J‑Lead) surface-mount package. It provides a mid-range logic capacity with 24,000 gates and 608 logic element cells, along with 72 general-purpose I/O pins for flexible interfacing.

Designed for commercial embedded applications that require a compact package, flexible I/O count, and operation across a standard commercial temperature range, this device supports 3 V to 5.25 V supply systems and is RoHS compliant.

Key Features

• Core Logic  24,000 gates and 608 logic element cells provide mid-range programmable logic for glue logic, protocol handling, and custom logic functions.
• I/O Density  72 general-purpose I/O pins accommodate multiple parallel interfaces, signal routing, and peripheral connectivity.
• Package  84-LCC (J‑Lead) surface-mount package, supplier device package 84-PLCC with dimensions 29.31 × 29.31 mm, suitable for compact board layouts.
• Power  Supports a wide supply voltage range from 3 V to 5.25 V for compatibility with a variety of commercial power rails.
• Temperature & Grade  Commercial grade with an operating temperature range of 0 °C to 70 °C for standard commercial environments.
• Compliance  RoHS compliant for regulatory and environmental considerations in electronics manufacturing.

Typical Applications

• Commercial Embedded Systems  Integration into compact embedded platforms where mid-range programmable logic and multiple I/O are required.
• Interface and Glue Logic  Use as protocol bridging, bus interfacing, or custom logic to adapt between subsystems using its 72 I/O lines.
• Compact Board Designs  The 84-LCC surface-mount package enables space-efficient placement in board layouts constrained by footprint.

Unique Advantages

• Balanced Logic Capacity: 24,000 gates and 608 logic element cells deliver a practical balance of resources for mid‑complexity designs without excessive overhead.
• Generous I/O Count: 72 I/O pins provide flexibility for multiple peripherals, sensor interfaces, or parallel signals.
• Wide Supply Compatibility: 3 V to 5.25 V supply range allows integration into diverse commercial power architectures.
• Compact Surface-Mount Package: 84-LCC (84-PLCC, 29.31 × 29.31 mm) supports compact PCB layouts while maintaining serviceable pin access.
• Commercial Temperature Rating: Rated 0 °C to 70 °C for standard commercial deployments.
• Environmental Compliance: RoHS compliant to meet regulatory environmental standards for electronics manufacturing.

Why Choose A42MX16-1PL84?

The A42MX16-1PL84 positions itself as a practical, mid-range FPGA option for commercial embedded designs that need a balance of programmable logic, I/O flexibility, and a compact package. Its support for 3 V to 5.25 V supplies, 72 I/O pins, and a surface-mount 84-LCC package make it suitable for designers seeking straightforward integration into standard commercial systems.

This device is best suited for teams and projects that require reliable, RoHS-compliant FPGA capacity within a commercial temperature range and a compact footprint, offering straightforward scalability within MX-family deployments.

Request a quote or submit your requirements to receive pricing and availability for the A42MX16-1PL84. Our team will respond with a tailored sales estimate and ordering information.
