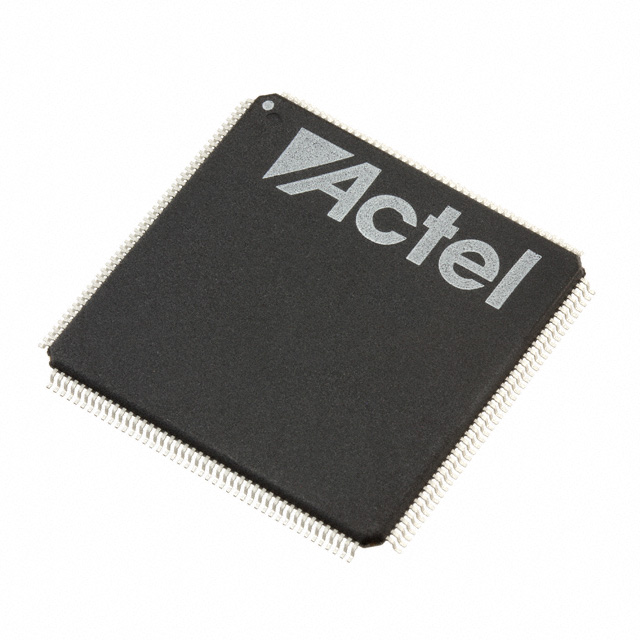

A42MX16-2TQG176I

The A42MX16-2TQG176I is an MX family field programmable gate array (FPGA) from Microchip Technology, supplied in a 176-LQFP package. The device provides programmable logic resources, a high I/O count and a broad supply-voltage range for embedded and industrial designs.

With a documented logic capacity expressed in gates and logic elements, industrial-grade temperature rating and surface-mount 176-LQFP packaging, this FPGA targets applications that require moderate programmable logic density, flexible I/O and robust operating range.

Key Features

• Core logic  The device provides 24,000 gates, 1,232 logic elements and 608 logic element cells for implementing custom digital functions.
• I/O  140 general-purpose I/O pins to support interfaces and external peripherals.
• Memory  Total RAM Bits: 0 (no on-chip RAM reported).
• Power  Wide supply-voltage support from 3 V to 5.5 V to accommodate a range of system power domains.
• Package & mounting  176-LQFP package (supplier device package: 176-TQFP, 24×24) with surface-mount mounting type for standard PCB assembly.
• Temperature and grade  Industrial grade with an operating temperature range of –40 °C to 85 °C.
• Environmental compliance  RoHS compliant.

Unique Advantages

• Flexible I/O density: 140 I/O pins provide scope for multiple external interfaces and peripheral connections.
• Moderate programmable capacity: 24,000 gates and 1,232 logic elements (608 logic element cells) enable implementation of a range of custom digital functions without overspecifying resources.
• Industrial readiness: Industrial operating temperature rating (–40 °C to 85 °C) and industrial grade classification for reliable operation in harsher environments.
• Wide supply-voltage tolerance: Operates from 3 V to 5.5 V, simplifying integration with systems using common supply rails.
• Standard surface-mount package: 176-LQFP footprint supports common PCB assembly processes and established board-level designs.
• Regulatory compliance: RoHS compliant for environmental and manufacturing considerations.

Why Choose A42MX16-2TQG176I?

The A42MX16-2TQG176I delivers a balanced combination of programmable logic capacity, high I/O count and industrial-grade operating range in a standard 176-LQFP surface-mount package. It is well suited to designs that need moderate logic resources, broad voltage compatibility and reliable operation across –40 °C to 85 °C.

As a Microchip Technology FPGA offering, the part aligns with system designs that prioritize predictable, documented specifications for logic capacity, I/O and environmental performance.

Request a quote or submit an inquiry to receive pricing and availability information for the A42MX16-2TQG176I.
