IS22EF08G-JQLA2
| Part Description |
IC FLASH 64MBIT EMMC 100FBGA |
|---|---|
| Quantity | 1,029 Available (as of May 5, 2026) |
| Product Category | Memory |
|---|---|
| Manufacturer | Integrated Silicon Solution Inc |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 52 Weeks |
| Datasheet |
Specifications & Environmental
| Device Package | 100-LFBGA (14x18) | Memory Format | FLASH | Technology | FLASH - NAND (MLC) | ||
|---|---|---|---|---|---|---|---|
| Memory Size | 64 Gbit | Access Time | N/A | Grade | Automotive | ||
| Clock Frequency | 200 MHz | Voltage | 2.7V ~ 3.6V | Memory Type | Non-Volatile | ||
| Operating Temperature | -40°C ~ 105°C (TA) | Write Cycle Time Word Page | N/A | Packaging | 100-LBGA | ||
| Mounting Method | Non-Volatile | Memory Interface | eMMC_5.1 | Memory Organization | 8G x 8 | ||
| Moisture Sensitivity Level | 3 (168 Hours) | RoHS Compliance | ROHS3 Compliant | REACH Compliance | REACH Unaffected | ||
| Qualification | N/A | ECCN | 3A991B1A | HTS Code | 8542.32.0071 |
Overview of IS22EF08G-JQLA2 - 64Gbit eMMC NAND Flash Memory
The IS22EF08G-JQLA2 is a 64Gbit (8GB) embedded MultiMediaCard (eMMC) NAND flash memory solution from ISSI. Built on Multi-Level Cell (MLC) NAND technology with an 8G x 8 organization, this eMMC 5.1 compliant device delivers reliable non-volatile storage for embedded systems requiring high-density data retention.
Designed for industrial and commercial applications, the IS22EF08G-JQLA2 operates across an extended temperature range of -40°C to 105°C, making it well-suited for environments where temperature extremes are common. With a clock frequency of up to 200MHz and standard eMMC interface, this device simplifies integration while providing robust performance for boot code, firmware storage, and data logging applications.
Key Features
- High-Density MLC NAND Flash - 64Gbit (8GB) capacity organized as 8G x 8, providing substantial storage for embedded applications requiring non-volatile memory retention.
- eMMC 5.1 Interface - Industry-standard embedded MultiMediaCard interface operating at up to 200MHz clock frequency enables straightforward integration with host processors and controllers.
- Extended Temperature Range - Rated for -40°C to 105°C ambient operation (TA), ensuring reliable performance in industrial environments and outdoor installations subject to temperature extremes.
- Flexible Power Supply - Operates from 2.7V to 3.6V supply voltage, accommodating common embedded system power architectures and supporting low-power design requirements.

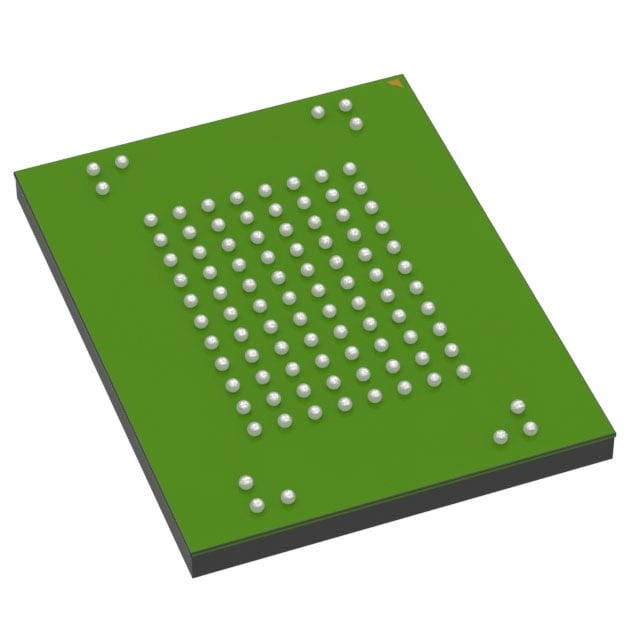

- Compact 100-LFBGA Package - 14mm x 18mm 100-ball fine-pitch ball grid array package minimizes board footprint while providing robust mechanical attachment for demanding applications.
Typical Applications
- Industrial Control Systems - This eMMC flash provides boot code storage and data logging for PLCs, HMIs, and industrial controllers where the extended temperature range ensures consistent operation in factory floor environments.
- Automotive Infotainment - The device serves as non-volatile storage for navigation data, media content, and system firmware in dashboard systems, leveraging its wide operating temperature tolerance for in-cabin applications.
- IoT and Edge Computing Devices - The IS22EF08G-JQLA2 offers reliable firmware and data storage for connected devices and edge gateways requiring compact form factor and extended environmental ratings.
- Set-Top Boxes and Streaming Devices - With its high-density storage and standard eMMC interface, this flash memory supports multimedia content caching and application storage in consumer electronics products.
- Medical and Healthcare Equipment - The device provides dependable non-volatile storage for patient data, firmware, and configuration settings in medical devices operating across varied environmental conditions.
Unique Advantages
- Simplifies System Design: The integrated eMMC controller manages wear leveling, bad block management, and error correction, reducing host processor overhead and accelerating time-to-market.
- Reduces Component Count: Single-chip eMMC solution eliminates the need for external NAND controller and associated passive components, lowering BOM cost and board complexity.
- Extends Operating Range: -40°C to 105°C temperature rating enables deployment in harsh industrial and outdoor environments without requiring additional thermal management.
- Ensures Data Retention: MLC NAND flash technology with integrated controller provides reliable long-term non-volatile storage for critical firmware and application data.
- Accelerates Data Throughput: 200MHz clock frequency and eMMC 5.1 standard support fast boot times and responsive system operation for performance-sensitive applications.
- Maintains Compatibility: Industry-standard eMMC 5.1 interface ensures broad processor support and simplified migration across hardware platforms and product generations.
Why Choose IS22EF08G-JQLA2?
The IS22EF08G-JQLA2 is an ideal storage solution for embedded systems requiring high-density non-volatile memory combined with industrial-grade environmental ratings. Its eMMC 5.1 compliance and integrated controller functionality make it particularly well-suited for designs where development time and system reliability are priorities. The extended temperature range addresses the needs of industrial automation, transportation, and outdoor equipment applications where conventional commercial-grade memory may not provide adequate environmental tolerance.
For engineers designing industrial controllers, automotive systems, or ruggedized IoT devices, the IS22EF08G-JQLA2 delivers a proven storage architecture that balances capacity, performance, and environmental resilience. Its compact 100-LFBGA package and standard interface reduce integration risk while providing long-term availability for production designs.
Get a Quote
Contact our sales team for pricing, availability, and volume discounts on the IS22EF08G-JQLA2. Our technical support staff can assist with integration guidance, reference designs, and application-specific recommendations to help you optimize your embedded storage solution.
