MT48LC4M32B2B5-6A AIT:L TR

The MT48LC4M32B2B5-6A AIT:L TR is a 128 Mbit synchronous DRAM organized as 4M x 32 with a parallel memory interface. It provides synchronous, pipelined SDRAM functionality with programmable burst lengths and CAS latency options for systems that require predictable, high-throughput volatile storage.

This device targets applications that need a compact, automotive-grade memory solution with a 90-ball VFBGA package, AEC-Q100 qualification, and an extended operating temperature range of -40°C to 85°C.

Key Features

• Core & memory architecture  128 Mbit organized as 4M x 32 with four internal banks for efficient row access and hidden precharge.
• Synchronous SDRAM operation  Fully synchronous design with all signals registered on the positive clock edge and internal pipelined operation for column-address changes every clock cycle.
• Performance & timing  Up to 167 MHz clock frequency with an access time around 5.4–5.5 ns and write cycle time (word page) of 12 ns; supports CAS latencies 1, 2, and 3.
• Burst and refresh modes  Programmable burst lengths (1, 2, 4, 8, or full page), auto precharge (including concurrent auto precharge), auto refresh, and self refresh modes.
• Voltage & I/O  Single-supply operation from 3.0 V to 3.6 V with LVTTL-compatible inputs and outputs for standard parallel interfacing.
• Reliability & qualification  AEC-Q100 qualified and specified for an operating ambient temperature range of -40°C to 85°C.

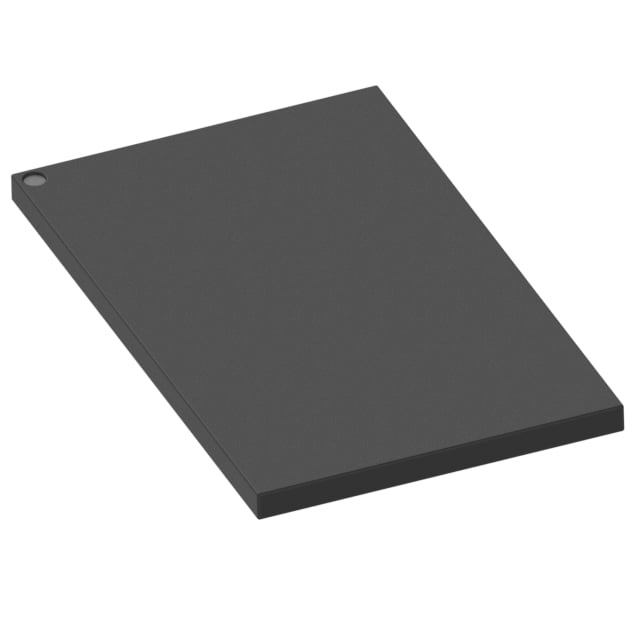

• Package  Compact 90-ball VFBGA package (8 mm × 13 mm) optimized for space-constrained system designs.

Typical Applications

• Automotive electronic control units (ECUs)  Automotive-grade qualification and extended temperature rating make it suitable for memory buffers and working storage in vehicle systems.
• Industrial control and instrumentation  Extended operating temperature and reliable refresh modes support deterministic storage needs in industrial environments.
• Embedded systems with parallel SDRAM interfaces  Use as system DRAM for embedded controllers, buffering, and data staging where parallel access and programmable burst behavior are required.

Unique Advantages

• Automotive-grade qualification: AEC-Q100 qualification provides documented device-level qualification for automotive applications.
• Predictable synchronous performance: Fully synchronous operation with pipelined access and selectable CAS latencies supports predictable timing for system designers.
• Flexible burst configuration: Programmable burst lengths and auto precharge/auto refresh modes simplify memory control for variable throughput needs.
• Compact form factor: 90-ball VFBGA (8×13 mm) package minimizes PCB area while delivering 128 Mbit density.
• Standard 3.3 V supply: Single +3.3 V ±0.3 V supply simplifies power domain design and integration with common system voltages.

Why Choose MT48LC4M32B2B5-6A AIT:L TR?

The MT48LC4M32B2B5-6A AIT:L TR balances compact packaging, synchronous SDRAM performance, and automotive-grade qualification for applications that require reliable, parallel volatile memory. Its 4M × 32 organization, programmable burst modes, and support for multiple CAS latencies make it suitable for designs that need predictable timing and flexible data transfer patterns.

This device is appropriate for engineers specifying memory for automotive and industrial systems where AEC-Q100 qualification, extended temperature operation, and a space-efficient VFBGA package are required. Its combination of timing options, refresh capabilities, and standard 3.3 V supply supports long-term integration and predictable behavior in deployed systems.
