W25N512GWFIT TR

The W25N512GWFIT TR is a 512 Mbit serial SLC NAND flash memory device operating at 1.8 V with support for standard, dual and quad SPI interfaces. It provides non-volatile storage organized as 64M x 8 and includes buffer read and continuous read modes for efficient data transfer.

Designed for systems that require compact, low-voltage serial flash, the device combines a 104 MHz clock capability and a 7 ns access time with on-chip protection and configuration options exposed via status and configuration registers.

Key Features

• Memory Core 512 Mbit SLC NAND flash organized as 64M x 8, providing non-volatile storage in a serial FLASH format.
• Interface and Read Modes Supports SPI with Dual and Quad I/O, plus buffer read and continuous read modes for higher-throughput serial access.
• Performance Clock frequency up to 104 MHz and an access time of 7 ns for fast serial read operations.
• Program / Erase and Timing Page program and block erase operations are supported; typical write cycle time for a word/page is specified at 700 µs.
• Voltage and Temperature Low-voltage operation across 1.7 V to 1.95 V and an operating ambient temperature range of –40 °C to 85 °C (TA).
• Protection & Configuration Multiple protection and configuration registers are available (including block protect bits, write-protect enable, OTP lockable bits) along with status registers for device and ECC information.

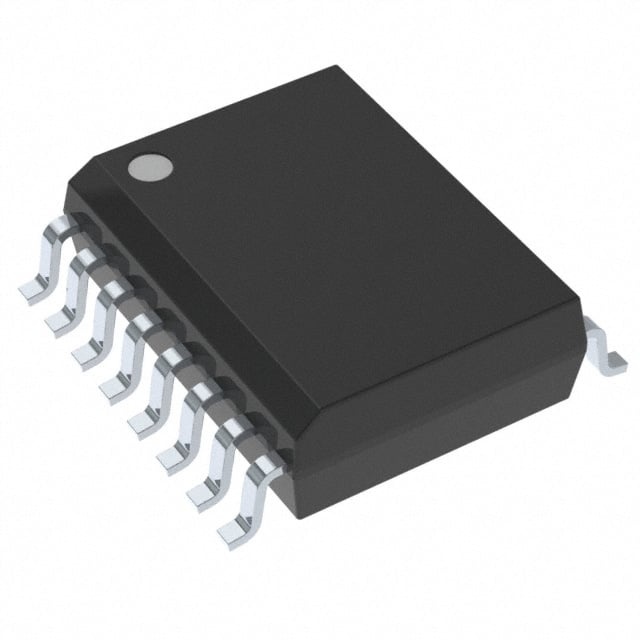

• Package Available in a 16-SOIC (300 mil / 0.295", 7.50 mm width) package for compact board-level integration.

Typical Applications

• Embedded Storage Non-volatile serial flash storage where 512 Mbit SLC NAND and SPI/Quad I/O are required.
• Firmware and Boot Code Storage of firmware or boot images with configurable protection and status registers to manage writes and access.
• Data Logging Buffered and continuous read modes with high clock frequency support enable efficient retrieval of logged data.

Unique Advantages

• Low-voltage operation: Supports a narrow 1.7 V to 1.95 V supply range for designs targeting 1.8 V power rails.
• High-speed serial access: Up to 104 MHz clock and support for Dual/Quad SPI and buffer/continuous read modes improve throughput for serial flash transfers.
• On-chip protection and configuration: Volatile and OTP-lockable protection/configuration registers (block protect, WP-E, SRP bits) and status registers provide flexible write protection and device control.
• ECC and reliability indicators: Configuration and status bits (including ECC enable and cumulative ECC status) allow monitoring and control of error-correction behavior.
• Compact SOIC packaging: 16-SOIC package (7.50 mm width) simplifies PCB integration where space and standard through-assembly processes are required.

Why Choose W25N512GWFIT TR?

The W25N512GWFIT TR pairs 512 Mbit SLC NAND storage with a flexible SPI interface and on-chip protection/configuration features, making it suitable for embedded designs that demand non-volatile serial flash with configurable reliability options. Its 1.8 V operation, 104 MHz clock capability and support for Dual/Quad I/O enable high-efficiency data transfers while the detailed status and configuration registers provide precise control over protection and ECC behavior.

This device is appropriate for designers requiring a compact 16-SOIC package and a clear set of operational parameters (access time, write cycle timing, voltage and temperature ranges) to simplify integration and long-term deployment.

Request a quote or contact sales to discuss availability, lead times, and volume pricing for the W25N512GWFIT TR.
