W9864G6KT-6I

The W9864G6KT-6I is a high-speed synchronous DRAM (SDRAM) device providing 64 Mbit of volatile memory in a compact 54-TFBGA (8×8) package. It is organized as 1M × 4 banks × 16 bits and delivers data throughput up to 166 MHz with LVTTL interface signaling.

Designed for applications that require synchronous burst access and standard SDRAM command functionality, this industrial-grade (-40°C to 85°C) device supports a 3.0 V to 3.6 V supply and common SDRAM features such as self-refresh, power-down, auto-precharge and multi-bank operation.

Key Features

• Memory Organization
  64 Mbit capacity organized as 1M × 4 banks × 16 bits (equivalently represented as 8M × 8), providing straightforward addressing for burst and page-mode accesses.
• Performance
  Operates up to 166 MHz (supports CAS latency 3 as specified) with an access time of 5 ns to support high-throughput synchronous applications.
• Interface
  LVTTL memory interface for compatibility with common logic-level systems and synchronous control schemes.
• SDRAM Command Set
  Implements standard SDRAM functions including bank activate, read/write, burst read/write, auto-precharge, precharge, self-refresh, power-down and mode register programming.
• Power
  Rated for 3.0 V to 3.6 V supply operation to match typical 3V system rails.
• Package

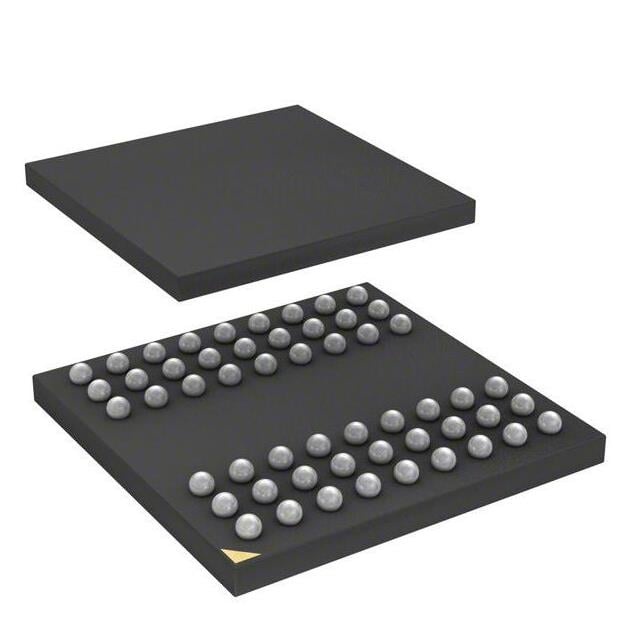

  54-TFBGA (8×8) supplier device package for compact board footprint and BGA mounting.
• Operating Temperature
  Industrial temperature range of -40°C to 85°C for operation in temperature-challenging environments.

Typical Applications

• Synchronous memory systems
  Systems requiring 64 Mbit SDRAM capacity with up to 166 MHz operation and standard SDRAM command support.
• Embedded controllers and processors
  Use as external DRAM for processors or controllers that need burst-mode data transfers and multi-bank access.
• Industrial equipment
  Applications requiring memory that operates across an industrial temperature range (-40°C to 85°C) and standard 3.0–3.6 V supply.

Unique Advantages

• Industrial temperature support: Built to operate from -40°C to 85°C, enabling use in temperature-sensitive deployments.
• High synchronous throughput: Up to 166 MHz operation with CAS latency 3 supports high-rate burst transfers for time-critical data flows.
• Comprehensive SDRAM feature set: On-chip support for self-refresh, power-down, auto-precharge and multi-bank operation simplifies memory control and power management.
• Standard LVTTL interface: Compatible with common logic-level interfaces for straightforward integration into existing designs.
• Compact BGA package: 54-TFBGA (8×8) package reduces PCB footprint while providing a robust mounting option for production assembly.
• 3.0–3.6 V operation: Matches typical 3V system rails for easy power-supply integration.

Why Choose W9864G6KT-6I – IC DRAM 64MBIT LVTTL 54TFBGA?

The W9864G6KT-6I pairs standard SDRAM functionality and high synchronous throughput with industrial temperature capability and a compact 54-TFBGA package. Its 64 Mbit capacity and multi-bank architecture enable burst and page-mode operation suitable for designs that require predictable, high-rate memory access under a 3.0–3.6 V supply.

This device is appropriate for engineers and procurement teams specifying external SDRAM for embedded systems, industrial equipment, or other designs that need a combination of synchronous performance, standard SDRAM command support, and rugged temperature operation.

If you would like pricing, lead-time information or a formal quote for the W9864G6KT-6I, please request a quote or submit a sales inquiry to discuss availability and procurement options.
