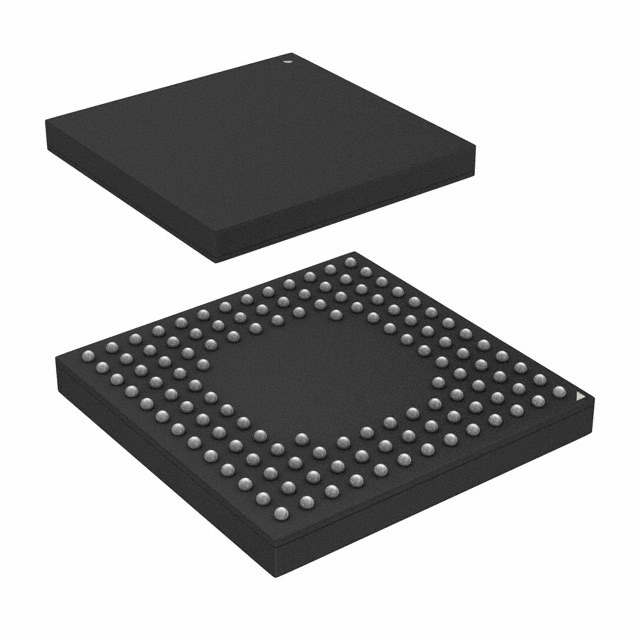

CY8C614AFNI-S2F03T
IC MCU 32BIT 2MB FLASH 100WLCSP
| Part Description |
ARM® Cortex®-M0+, ARM® Cortex®-M4F PSoC® 6 Microcontroller IC 32-Bit Dual-Core 100MHz, 150MHz 2MB (2M x 8) FLASH 100-WLCSP (4.11x3.9) |
|---|---|
| Quantity | 1,055 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Infineon Technologies |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 10 Weeks |
| Datasheet |
Specifications
| Part Package | 100-UFBGA, WLCSP |
|---|---|
| Device Package | 100-WLCSP (4.11×3.9) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | ARM® Cortex®-M0+, ARM® Cortex®-M4F |
| Core Size: | 32-Bit Dual-Core |
| Speed: | 100MHz, 150MHz |
| Connectivity: | eMMC/SD/SDIO, I2C, IrDA, LINbus, Microwire, QSPI, SmartCard, SPI, SSP, UART/USART, USB |
| Peripherals: | Brown-out Detect/Reset, DMA, I2S, LCD, LVD, POR, PWM, Temp Sensor, WDT |
| Number of I/O: | 82 |
| Program Memory Size: | 2MB (2M x 8) |
| Program Memory Type: | FLASH |
| RAM Size: | 1M x 8 |
| Voltage – Supply (Vcc/Vdd): | 1.7V ~ 3.6V |
| Data Converters: | A/D 16x8b, 16×10/12b SAR, Sigma-Delta; D/A 2×7/8b |
| Oscillator Type: | External, Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | N/A |
| HTS Code | N/A |
