AM3352BZCZD30

The AM3352BZCZD30 is a Sitara AM335x series microprocessor IC featuring a single ARM® Cortex®-A8 core running at 300 MHz. It is designed for embedded systems that require integrated connectivity, multimedia acceleration, and industrial-grade operation.

With built-in NEON™ SIMD multimedia support, multiple high-speed interfaces and flexible memory controller support, this device targets designers building industrial control, HMI, networking and multimedia-enabled embedded applications that demand robust operation across a wide temperature range.

Key Features

• Core and Performance: ARM® Cortex®-A8 single 32-bit core at 300 MHz, providing deterministic processing for embedded workloads.
• Multimedia Acceleration: NEON™ SIMD multimedia co-processor and graphics acceleration to support compute and media tasks.
• Memory Interfaces: Integrated memory controllers supporting LPDDR, DDR2, DDR3 and DDR3L memory types for flexible system memory design.
• Display and UI: Display interface controllers for LCD and touchscreen integration to enable rich human–machine interfaces.
• Connectivity: Dual 10/100/1000Mbps Ethernet ports and two USB 2.0 + PHY interfaces for high-throughput network and peripheral connectivity.
• Additional Interfaces: Built-in CAN interface for serial control and communication in embedded networks.
• Security: On-chip cryptography and a random number generator for hardware-accelerated security functions.

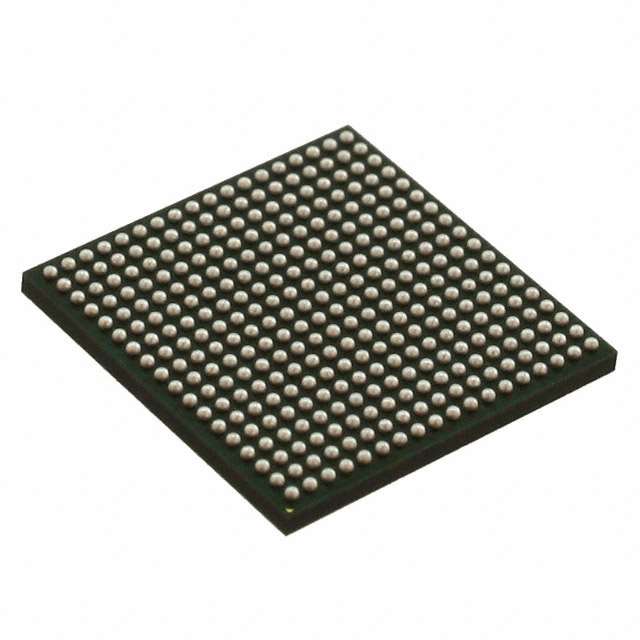

• Package and Mounting: Supplied in a 324-NFBGA (15×15) package, surface-mountable for compact board designs.
• Industrial Grade Operation: Rated for operation from −40 °C to 90 °C, suitable for demanding environmental conditions.

Typical Applications

• Industrial Automation: Control and monitoring systems leveraging the Cortex-A8 core, CAN interface and industrial temperature rating for reliable field operation.
• Human–Machine Interfaces (HMI): Touchscreen and LCD-capable designs using the display controllers and graphics acceleration to drive operator interfaces.
• Networking and Communications: Gateway and embedded network appliances that utilize dual 10/100/1000Mbps Ethernet ports and USB 2.0 connectivity.
• Multimedia Devices: Embedded products requiring NEON™ SIMD and graphics acceleration for media playback and processing tasks.

Unique Advantages

• Integrated Connectivity: Dual 10/100/1000Mbps Ethernet ports plus two USB 2.0 + PHY interfaces consolidate wired networking and peripheral I/O on-chip, reducing external components.
• Flexible Memory Support: Native controllers for LPDDR, DDR2, DDR3 and DDR3L allow designers to select memory density and power profiles that match system requirements.
• Industrial Temperature Range: −40 °C to 90 °C rating supports deployment in harsh and temperature-variable environments.
• Hardware Security Primitives: Built-in cryptography and a random number generator enable secure boot and runtime security features without relying solely on external accelerators.
• Compact Surface-Mount Package: 324-NFBGA (15×15) delivery provides a compact form factor for space-constrained PCBs while supporting robust soldered mounting.
• Multimedia and UI Ready: NEON™ SIMD and graphics acceleration combined with LCD/touchscreen controllers streamline HMI and media-rich application development.

Why Choose AM3352BZCZD30?

The AM3352BZCZD30 positions itself as a balanced, industrial-grade Sitara AM335x microprocessor offering a single ARM® Cortex®-A8 core, multimedia acceleration and broad I/O integration. Its combination of memory flexibility, dual Ethernet, USB interfaces and on-chip security makes it suitable for embedded designs that require dependable connectivity, user interfaces and secure operation.

Engineers designing compact, temperature-tolerant systems will find the 324-NFBGA package and surface-mount mounting convenient for modern PCB layouts. As part of the Sitara AM335x family from Texas Instruments, this device fits designs targeting longevity and integration within embedded product lines.

Request a quote or submit your inquiry to receive pricing and availability for AM3352BZCZD30 and to discuss how it fits your embedded design requirements.
