AM5718AABCXQ1

The AM5718AABCXQ1 is a Sitara™ microprocessor IC from Texas Instruments based on a single ARM® Cortex®-A15 core. It delivers 32-bit application processing at up to 1.5 GHz in a 760-FCBGA (23×23) package optimized for embedded designs.

Designed for embedded systems that require integrated multimedia and I/O, the device combines a high-clock application core with on-chip graphics/multimedia processors and a broad set of peripherals to support connected, display-driven applications across demanding temperature ranges.

Key Features

• Core  1.5 GHz ARM® Cortex®-A15 single 32-bit core for application processing.
• Multimedia and Graphics  Includes multimedia co-processors (GPU, IPU, VFP) to accelerate graphics and image processing tasks.
• Memory Interfaces  Integrated controllers for DDR3 and SRAM to support system memory and buffer needs.
• Display Interfaces  HDMI and LCD display controllers enable direct connection to common display panels and external displays.
• Connectivity  Built-in 10/100/1000 Mbps Ethernet (1) and CAN support networked and vehicle communication requirements.
• Storage and USB  SATA 3 Gbps (1) and USB 2.0 (1) / USB 3.0 (1) provide host/storage and high-speed peripheral connectivity.

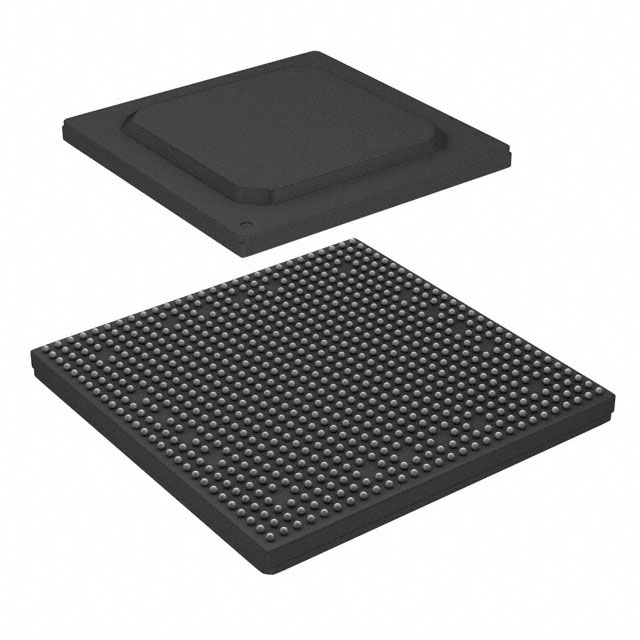

• Package and Mounting  760-FCBGA (23×23) supplier device package; surface mount assembly.
• Automotive Qualification & Temperature  AEC-Q100 qualification and an operating temperature range of −40 °C to 125 °C for thermally demanding and automotive-grade applications.
• Compliance  RoHS compliant.

Typical Applications

• Automotive Systems  Automotive-capable processing solutions where AEC-Q100 qualification and a −40 °C to 125 °C operating range are required; supports vehicle networks via CAN and gigabit Ethernet.
• Human-Machine Interfaces (HMI)  Display-driven embedded HMIs using HDMI/LCD output and on-chip graphics acceleration for responsive interfaces.
• Networked Embedded Storage and Gateways  Edge devices and gateways leveraging gigabit Ethernet, SATA 3 Gbps, and USB 3.0 connectivity for data throughput and storage.
• Multimedia Processing  Embedded multimedia platforms that benefit from integrated GPU, IPU, and VFP co-processors for media decode and image processing tasks.

Unique Advantages

• High-clock application processing: 1.5 GHz ARM Cortex-A15 core provides a balance of single-core performance for compute-intensive embedded tasks.
• Broad on-chip peripheral set: Integrated Ethernet, SATA, USB, HDMI, LCD and CAN reduce external component count and simplify board-level design.
• Integrated multimedia acceleration: GPU, IPU and VFP offload graphics and image processing from the CPU, enabling richer user interfaces.
• Automotive-grade robustness: AEC-Q100 qualification combined with −40 °C to 125 °C operation supports deployments in temperature-extreme environments.
• Compact FCBGA package: 760-FCBGA (23×23) supplier package enables dense system designs with surface-mount assembly.
• Standards-based connectivity: Gigabit Ethernet, SATA 3 Gbps and USB 3.0 provide common, high-throughput interfaces for system integration.

Why Choose AM5718AABCXQ1?

The AM5718AABCXQ1 positions a high-clock ARM® Cortex®-A15 application core alongside a comprehensive set of multimedia accelerators and peripheral interfaces, delivering a balanced combination of processing capability and integration for embedded designs. Its AEC-Q100 qualification and −40 °C to 125 °C operating range make it suitable for thermally and environmentally demanding applications.

Manufactured by Texas Instruments, this Sitara-series microprocessor is appropriate for engineers building display-centric, networked, or automotive-capable embedded systems that require integrated storage, high-speed I/O and on-chip multimedia support while maintaining a compact FCBGA footprint.

Request a quote or submit a pricing inquiry to receive availability, lead-time and volume pricing information for the AM5718AABCXQ1.
