AM5748ABZX

The AM5748ABZX is a Sitara™ microprocessor from Texas Instruments featuring an ARM® Cortex®-A15 core running at 1.5 GHz. It integrates a Cortex‑M4 and C66x coprocessors, multiple high-speed interfaces, and advanced security features for embedded applications that require a balance of compute performance and system integration.

Designed for embedded systems, the device targets applications that need rich multimedia, networking and storage connectivity while maintaining commercial-grade qualification and compliance with RoHS.

Key Features

• Core and Coprocessors Single ARM® Cortex®‑A15 32‑bit core at 1.5 GHz with additional co‑processors (ARM® Cortex®‑M4 and C66x) to offload real‑time control and signal processing tasks.
• Memory and Display Supports DDR3 and DDR3L memory controllers and includes display interface controllers for HDMI, LCD and video output to enable rich user interfaces.
• Connectivity Dual Gigabit Ethernet ports and CAN interface provide robust wired networking options for industrial and communication systems.
• Storage and USB Integrated SATA 3 Gbps port plus two USB 3.0 and two USB 2.0 ports enable high‑speed storage and peripheral connectivity.
• Security and Boot Hardware security features include ARM TrustZone, boot security, cryptography acceleration, Secure JTAG and Secure RTC for protected boot and runtime operation.
• Graphics and Multimedia Graphics acceleration is provided to support multimedia and GUI workloads.

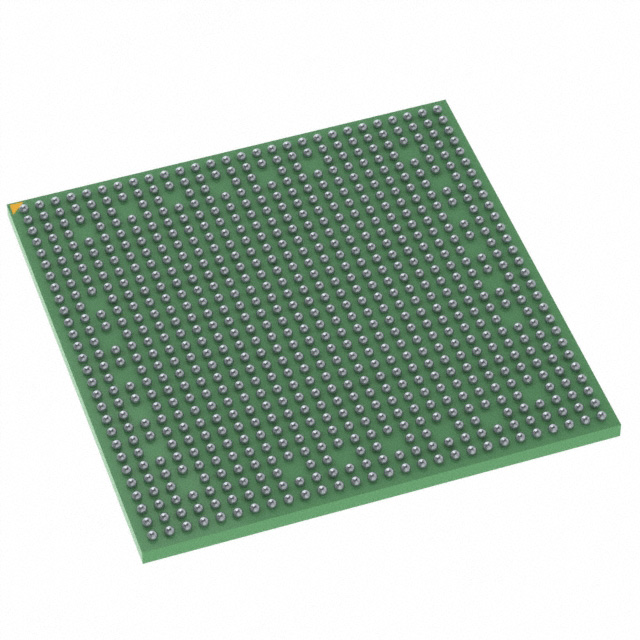

• Package and Mounting Supplied in a 760‑FCBGA package (23 × 23 mm) and intended for surface‑mount assembly.
• Reliability and Compliance Commercial grade with AEC‑Q100 qualification and RoHS compliance; specified operating temperature range is 0 °C to 90 °C.

Typical Applications

• Embedded Control & HMI: High‑performance CPU, graphics acceleration and HDMI/LCD interfaces support responsive human‑machine interfaces and control panels.
• Industrial Networking & Gateways: Dual GbE and CAN enable deployment in networked industrial gateway and communication devices.
• Multimedia & Storage Appliances: SATA and USB 3.0 connectivity with graphics acceleration suit media‑rich systems and local storage appliances.

Unique Advantages

• Balanced Compute and Acceleration: A 1.5 GHz Cortex‑A15 core plus Cortex‑M4 and C66x coprocessors let designers partition workloads between application, control and signal processing engines.
• Integrated Connectivity Suite: On‑chip GbE, CAN, USB 2.0/3.0 and SATA reduce external components and simplify board design for connected products.
• Built‑In Security: ARM TrustZone, secure boot, cryptography, Secure JTAG and Secure RTC address system integrity and secure provisioning needs.
• Rich Multimedia Support: Display controllers for HDMI, LCD and video plus graphics acceleration lower implementation effort for GUIs and video applications.
• Commercial Qualification and Compliance: AEC‑Q100 qualification and RoHS compliance provide supply‑chain and regulatory assurance for commercial embedded designs.

Why Choose AM5748ABZX?

The AM5748ABZX combines a high‑frequency Cortex‑A15 application core with dedicated coprocessors and a wide set of I/O to deliver a compact, integrated platform for embedded designs that need compute, connectivity and multimedia capabilities. Its 760‑FCBGA package and surface‑mount form factor suit compact system boards while the device’s security and storage interfaces support modern embedded requirements.

As part of the Sitara AM57xx family from Texas Instruments, the AM5748ABZX is positioned for designers seeking a scalable, feature‑rich microprocessor option with commercial qualification and industry‑grade connectivity to accelerate product development.

Request a quote or submit an inquiry to get pricing and availability for the AM5748ABZX and discuss how it fits your next embedded design.
