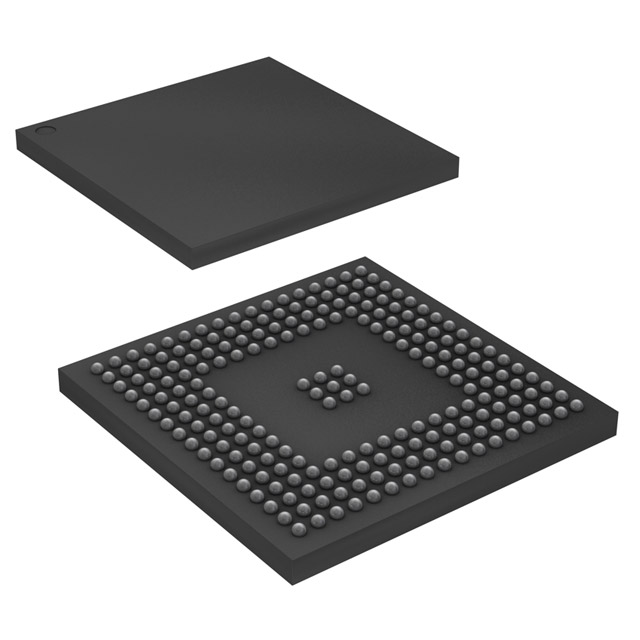

AT91SAM9261SB-CU-999

The AT91SAM9261SB-CU-999 is a 32-bit microprocessor based on the ARM926EJ-S core running at 190 MHz. Designed for embedded applications, it combines a single high-performance core with display and USB interfaces suited to industrial and embedded system designs.

Its integration of LCD display controller support, dual USB 2.0 ports and graphics acceleration, together with industrial temperature rating and a compact 217-LFBGA (15×15) package, make it a practical choice for space-constrained assemblies and production environments.

Key Features

• Core  ARM926EJ-S single core, 32-bit processor operating at 190 MHz for deterministic embedded control.
• Display  Integrated LCD display interface controllers to support display-driven user interfaces.
• USB Connectivity  Two USB 2.0 ports for high-speed peripheral and host connectivity.
• Graphics Acceleration  On-chip graphics acceleration to assist display rendering tasks.
• Industrial Grade & Temperature Range  Industrial grade component rated for operation from -40 °C to 85 °C.
• Package & Assembly  Supplier device package 217-LFBGA (15×15), surface-mount mounting; supplied in Tape & Reel (TR) format for automated assembly.

Typical Applications

• Industrial Control  Use in embedded controllers and operator interfaces that require a robust temperature range and reliable processing.
• Human–Machine Interfaces (HMIs)  Suitable for display-driven interfaces leveraging the LCD controller and graphics acceleration.
• USB-Enabled Embedded Systems  Integration into devices that require one or more USB 2.0 connections for peripherals or hosts.
• Compact OEM Electronics  Fits space-constrained designs where a 217-LFBGA package and surface-mount assembly are required.

Unique Advantages

• Balanced processing performance: Single 32-bit ARM926EJ-S core at 190 MHz provides a predictable processing platform for embedded tasks.
• Integrated display and graphics: LCD controller plus graphics acceleration reduce external component needs for display applications.
• USB 2.0 support: Dual USB 2.0 ports enable flexible peripheral and connectivity options without additional host controllers.
• Industrial readiness: Rated for -40 °C to 85 °C and specified as industrial grade for deployments in demanding environments.
• Production-friendly packaging: 217-LFBGA (15×15) surface-mount package supplied in Tape & Reel supports automated pick-and-place assembly.
• Manufacturer backing: Available from Microchip Technology, offering a known supply source for embedded component integration.

Why Choose AT91SAM9261SB-CU-999?

The AT91SAM9261SB-CU-999 positions itself as a compact, integrated microprocessor option for embedded and industrial designs that require a 32-bit ARM926EJ-S core at 190 MHz along with on-chip display, graphics and USB capabilities. Its industrial temperature rating and Tape & Reel packaging align with production and field-deployment requirements.

Engineers specifying this part benefit from a combination of processing capability, display and connectivity integration, and a package suited to automated assembly—making it appropriate for OEMs and developers building embedded systems with constrained board space and industrial operating needs.

Request a quote today to get pricing and availability information for the AT91SAM9261SB-CU-999 and to discuss your volume, packaging, or lead-time requirements.
