DRA722AHGABCQ1

The DRA722AHGABCQ1 is an ARM® Cortex®-A15 microprocessor IC from Texas Instruments' Jacinto DRA72x series. It provides a single Cortex-A15 core running at 750 MHz with an integrated set of multimedia, graphics and peripheral engines targeted at infotainment and embedded human-machine interface applications.

Designed for demanding embedded environments, this device combines processing, graphics acceleration, DSP and extensive I/O in a 760-pin FCBGA package with automotive-grade qualification and wide operating temperature capability.

Key Features

• Core Processor ARM® Cortex®-A15 single 32-bit core at 750 MHz providing the primary application processing element.
• Heterogeneous Processing Includes co-processors and accelerators such as ARM® Cortex®-M4, C66x DSP, IVA, BB2D 2D accelerator and a PowerVR™ SGX544 3D GPU for graphics and image/video processing.
• Video and Graphics Full-HD video support (1920 × 1080p, 60 fps), multiple video inputs/outputs, Video Processing Engine (VPE), Vivante® GC320 2D core and a 3D GPU for multimedia and display pipelines.
• Memory Subsystem DDR3/DDR3L external memory controller with EMIF support (DDR3-1333 up to 2 GB across a single chip select) and up to 512 KB of on-chip L3 RAM.
• Connectivity and Storage Integrated interfaces include SATA, USB 3.0 (SuperSpeed) and USB 2.0, multiple Gigabit Ethernet ports (10/100/1000 Mbps and additional 1 Gbps ports), PCIe® Gen2-capable lanes and multiple MMC/SD/SDIO interfaces.
• Display and Camera Interfaces Display controller with DMA supporting HDMI (HDMI 1.4a/DVI 1.0 compliant) and LCD outputs, plus MIPI® CSI-2 camera input support and a dedicated Video Input Port (VIP).
• Peripheral Rich I/O Extensive peripherals including multiple I2C, UART/IrDA/CIR, McSPI, QSPI, McASP audio ports, HDQ/1‑Wire® and general-purpose I/O (up to 215 pins).
• Security Features Hardware cryptography accelerators and DMA, device identity and secure boot capabilities, on-chip secure storage, isolation firewalls and debug security features.
• Automotive Grade & Temperature Range Qualified to AEC‑Q100 and specified for an operating temperature range of –40°C to 125°C.

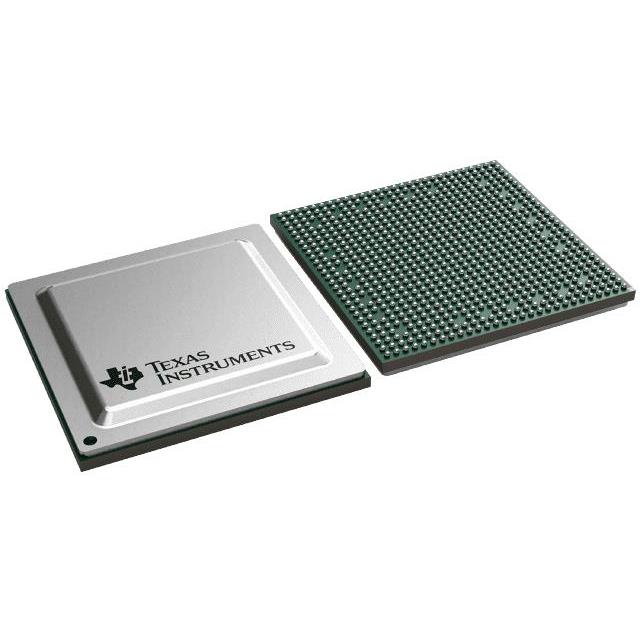

• Package & Mounting 760-pin FCBGA package (23 mm × 23 mm, 0.8 mm pitch), surface-mount device suited for high-density embedded designs.
• Standards & Compliance RoHS compliant.

Typical Applications

• Human–Machine Interface (HMI) Driving responsive, multimedia-rich user interfaces with integrated graphics and video processing.
• Navigation Supporting map rendering, multimedia overlays and connectivity for in‑vehicle navigation systems.
• Rear Seat Entertainment / Multimedia Playback Full‑HD video decode/encode and multiple display outputs for passenger entertainment systems.
• Digital Radio and Audio Systems Audio processing and decoding with multichannel audio interfaces for AM/FM/RDS and digital radio applications.
• ADAS and System Integration Compute and I/O resources suitable for integration with ADAS and higher‑level Jacinto platforms.

Unique Advantages

• Highly integrated processing subsystems: Combines Cortex‑A15 application core with Cortex‑M4 IPUs, C66x DSP, IVA and GPU to consolidate application, image and audio processing on a single device.
• Multimedia-oriented architecture: Dedicated video engines, display controller with HDMI/DVI support and full‑HD capabilities simplify multimedia system design.
• Extensive I/O and connectivity: Native support for SATA, SuperSpeed USB 3.0, multiple Gigabit Ethernet ports and PCIe lanes minimizes additional interface components.
• Automotive grade and wide temperature range: AEC‑Q100 qualification combined with –40°C to 125°C operating range supports robust deployment in automotive environments.
• Security and device protection: Built‑in hardware crypto, secure boot, secure storage and isolation firewalls enable secure system architectures.
• Compact, production-ready package: 760‑pin FCBGA in a 23 mm × 23 mm footprint provides a high‑density platform for space-constrained embedded designs.

Why Choose DRA722AHGABCQ1?

The DRA722AHGABCQ1 positions itself as a performance‑oriented, highly integrated infotainment and embedded processor. With a Cortex‑A15 core, onboard accelerators for video and graphics, DSP support and comprehensive peripheral sets, it addresses complex multimedia, HMI and networked embedded applications.

This device is suited for designers seeking a single-chip solution that combines compute, media processing and secure connectivity with automotive qualification and industrial temperature operation, backed by the Jacinto family architecture and feature set.

Request a quote or submit an inquiry to evaluate the DRA722AHGABCQ1 for your next embedded or infotainment design. Our team can provide pricing, lead‑time and additional technical information to support your evaluation and procurement process.
