HD63C03YP

The HD63C03YP is an 8-bit microprocessor based on the HD63C03Y core, offered in a 64-pin SDIP through-hole package. It is positioned for consumer embedded applications requiring a single 8-bit core and straightforward serial interfacing.

Featuring 5 V I/O, an SCI interface and a consumer-grade operating range, the HD63C03YP is suited to designs where through-hole mounting, ease of prototyping, and component-level replacement are priorities.

Key Features

• Core & Architecture  HD63C03Y core processor; single 8-bit core designed for embedded control tasks.
• Clock Speed  Speed listed in specifications: 3 MHz.
• Power  5 V I/O voltage suitable for legacy consumer electronics and common embedded power domains.
• Interfaces  Includes an SCI serial communications interface for basic serial data exchange.

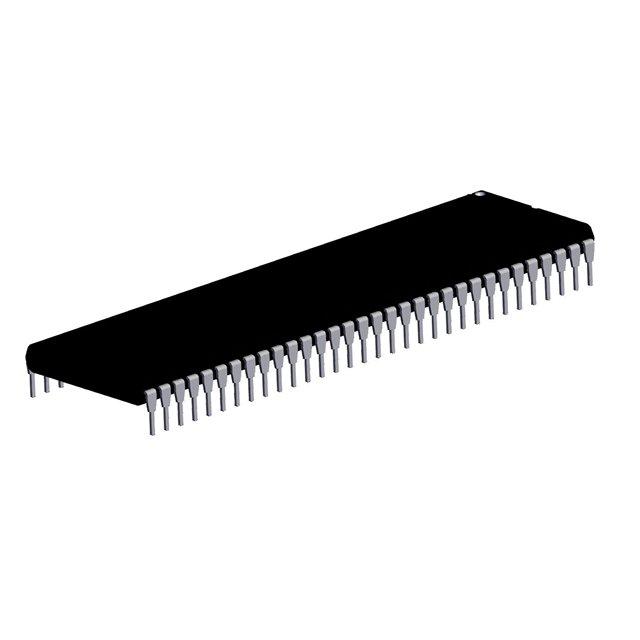

• Package & Mounting  64-SDIP (0.750", 19.05 mm) through-hole package for easy prototyping, board-level replacement, and manual assembly.
• Operating Range  Consumer qualification with an operating temperature range of −20 °C to 70 °C.
• Regulatory  RoHS compliant material status.
• Graphics  No graphics acceleration included.

Typical Applications

• Consumer Embedded Control  Used in consumer devices where a single 8-bit processor with 5 V I/O and serial communication is required for control and user interfaces.
• Legacy Hardware Maintenance  64-SDIP through-hole package and standard 5 V operation make it suitable for repair or replacement in legacy consumer equipment.
• Prototyping & Education  Through-hole mounting and a well-defined core architecture facilitate hands-on prototyping and instructional hardware projects.

Unique Advantages

• Established HD63C03Y core: Direct use of the HD63C03Y core for consistent behavior in designs that require this architecture.
• Through-hole 64-SDIP packaging: Simplifies prototyping, manual assembly and field replacement compared with surface-mount alternatives.
• Standard 5 V I/O: Matches legacy and many consumer power domains, reducing the need for level translation in compatible systems.
• Built-in SCI interface: Provides a simple serial communication option for control, telemetry or firmware loading.
• RoHS compliant: Supports environmental compliance requirements for consumer electronics manufacturing.
• Consumer-grade temperature range: −20 °C to 70 °C aligns with typical consumer device operating conditions.

Why Choose HD63C03YP?

The HD63C03YP combines the HD63C03Y 8-bit core with practical, serviceable packaging and standard 5 V I/O for consumer embedded applications. Its SCI interface and through-hole 64-SDIP form factor make it a pragmatic choice where prototyping ease, repairability and straightforward serial communication are priorities.

This device suits designers and maintainers working with consumer electronics, legacy systems, or educational hardware who need a reliable, RoHS-compliant 8-bit microprocessor with a clear operating temperature range and conventional mounting options.

Request a quote or submit an inquiry for pricing and availability of the HD63C03YP to receive lead time and purchasing information.
