HD64F3642AWV

The HD64F3642AWV is a microprocessor IC in the HD64F364 series designed for embedded applications. It uses an H8 core architecture with a single 16-bit core and targeted specifications for 5 V I/O environments.

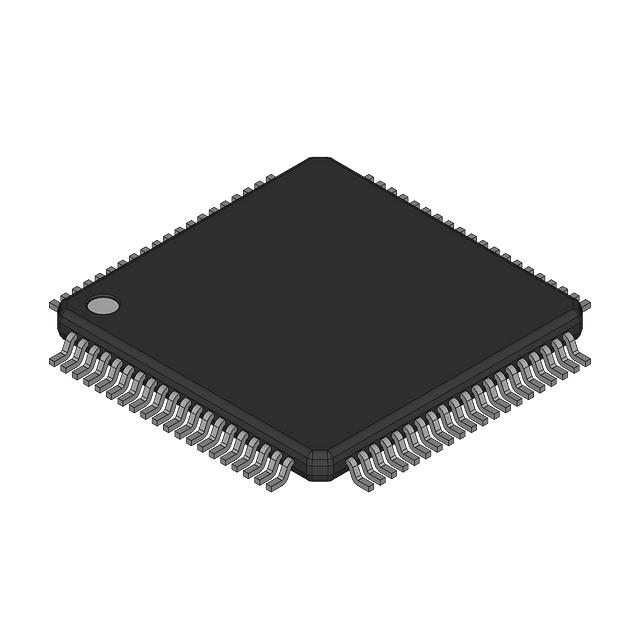

This device is supplied in a QFP surface-mount package, operates at system clock speeds up to 20 MHz, and is qualified for consumer applications. It is RoHS compliant and suited to designs that require a compact, surface-mount microprocessor with defined temperature and voltage limits.

Key Features

• Core and Bus Width  H8 core processor with a single 16-bit core and bus width, providing straightforward 16-bit processing capability for embedded control tasks.
• Performance  Rated speed of 20 MHz, suitable for low- to moderate-performance embedded control workloads.
• Voltage and I/O  Designed for 5 V I/O systems, matching common legacy and consumer logic voltage domains.
• Package and Mounting  Supplied in a QFP package with surface-mount mounting type for compact PCB implementations.
• Operating Temperature Range  Specified for operation from −20 °C to 75 °C, covering typical consumer-grade thermal environments.
• Environmental Compliance  RoHS compliant, meeting lead-free environmental requirements for modern electronics production.

Typical Applications

• Embedded Systems  Integration into embedded control platforms where a single 16-bit H8 core and 20 MHz operation meet processing needs.
• Consumer Electronics  Suitable for consumer-grade devices as indicated by its consumer qualification and specified operating temperature range.
• Surface-Mount PCB Designs  QFP surface-mount packaging supports compact, automated PCB assembly workflows.

Unique Advantages

• Clear 5 V I/O Compatibility  Direct support for 5 V logic levels simplifies integration with legacy and consumer electronic interfaces.
• Single 16-Bit H8 Core  A focused core configuration provides deterministic behavior for embedded control tasks.
• Compact QFP Surface-Mount Package  Enables higher board density and automated placement for production designs.
• Consumer Qualification  Specifically identified for consumer applications, aligning device selection with product requirements.
• RoHS Compliant  Meets environmental compliance goals for lead-free manufacturing processes.
• Defined Temperature Range  Operation from −20 °C to 75 °C supports a range of typical consumer operating conditions.

Why Choose HD64F3642AWV?

The HD64F3642AWV combines the H8 core architecture with a single 16-bit implementation and 20 MHz performance in a QFP surface-mount package, providing a compact, RoHS-compliant microprocessor choice for embedded and consumer applications. Its 5 V I/O compatibility and defined operating temperature range make it suitable for designs targeting consumer-grade environments.

This part is a fit for customers seeking a straightforward, integrated microprocessor solution for embedded designs where predictable 16-bit processing and surface-mount packaging are priorities. The HD64F3642AWV delivers clear, verifiable specifications for reliable BOM planning and production integration.

Request a quote or submit a purchase inquiry today to evaluate the HD64F3642AWV for your next embedded design project.
