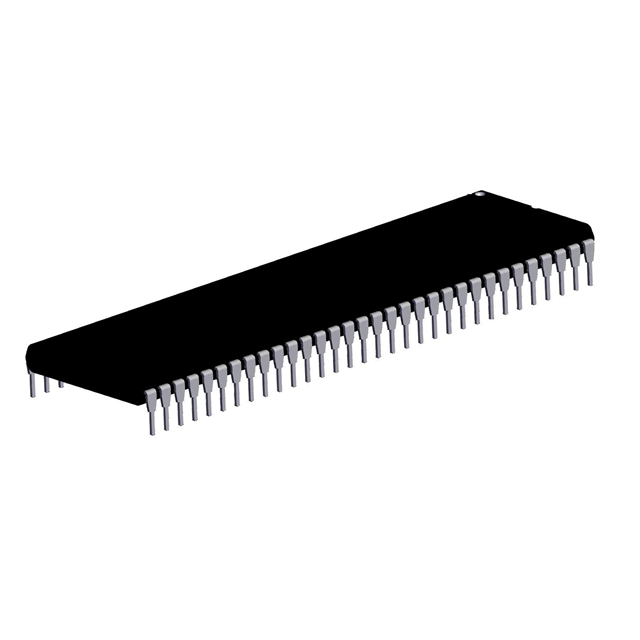

HD64B180R0P

The HD64B180R0P is an 8-bit microprocessor built around a Z180 core, offered by Renesas as part of the HD64B180R series. It is a single‑core, 8‑bit device operating at 6.17 MHz and specified for use in embedded, consumer applications.

This device provides a straightforward, through‑hole DIP package solution for designers requiring 5 V logic compatibility and consumer‑grade temperature operation from 0 °C to 70 °C.

Key Features

• Core  Z180 core, single 1‑core architecture with an 8‑bit data bus suitable for classic embedded processing tasks.
• Clock  6.17 MHz operating frequency as indicated in the product name for deterministic low‑speed control logic.
• Voltage  5 V I/O supply compatibility for direct interfacing with common TTL/CMOS logic levels.
• Package & Mounting  DIP package case supplied in a through‑hole mounting style to simplify assembly, prototyping, and retrofit designs.
• Qualification  Consumer qualification for consumer electronics and general embedded product designs.
• Operating Temperature  Rated for operation from 0 °C to 70 °C for standard ambient consumer environments.
• Graphics  No graphics acceleration, suitable for control‑oriented embedded tasks rather than graphical processing.
• Compliance  RoHS compliant to meet common environmental requirements.

Typical Applications

• Consumer embedded systems  Used in consumer devices where an 8‑bit control processor and consumer qualification are appropriate.
• Through‑hole prototyping and assembly  DIP packaging and through‑hole mounting make the part well suited for bench prototyping, repairs, and low‑volume assembly.
• Legacy and retrofit designs  Suitable for designs that require traditional DIP packages and 5 V logic compatibility.

Unique Advantages

• Familiar Z180 architecture:  Delivers a known 8‑bit core for designers comfortable with Z180‑based designs.
• 5 V I/O compatibility:  Direct interfacing with common TTL/CMOS logic simplifies system integration.
• Through‑hole DIP package:  Eases prototyping, hand‑assembly, and retrofit work without specialized surface‑mount processes.
• Consumer temperature range:  Rated 0 °C to 70 °C for typical consumer operating environments.
• RoHS compliant:  Meets environmental restriction requirements for many global markets.
• Renesas sourcing:  Provided by Renesas as part of the HD64B180R series for consistent component identity within the series.

Why Choose HD64B180R0P?

The HD64B180R0P positions itself as a straightforward 8‑bit microprocessor option for consumer embedded designs that require a Z180 core, 5 V logic compatibility, and a through‑hole DIP package. Its specification set supports easy prototyping, retrofit projects, and designs where classic 8‑bit control is appropriate.

Backed by Renesas as the manufacturer and delivered in a DIP form factor with RoHS compliance, the HD64B180R0P is suitable for teams and projects that value simple integration, clear electrical compatibility, and consumer‑grade operating conditions.

Request a quote or submit a purchase inquiry to obtain pricing and availability for the HD64B180R0P.
