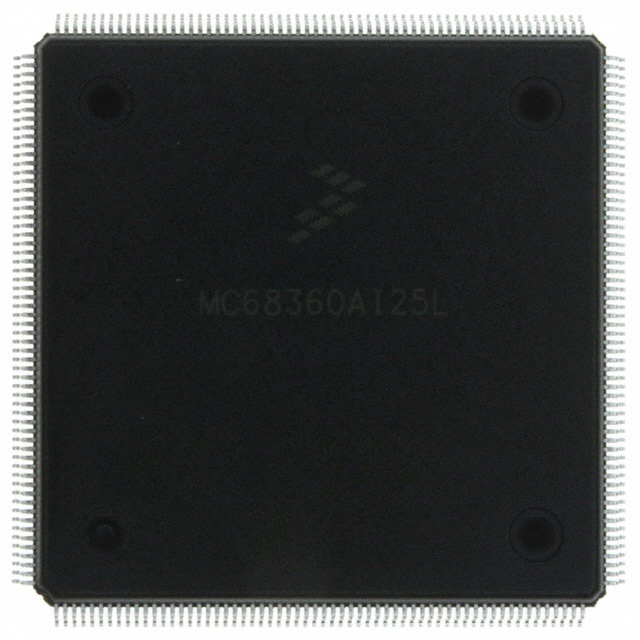

KMC68MH360CAI25L

The KMC68MH360CAI25L is a CPU32+ microprocessor from the MC68 series by NXP Semiconductors, featuring a single 32-bit core running at 25 MHz. It combines a CPU32+ core with an integrated Communications Processor Module (CPM) and multiple serial controllers, making it well suited for embedded controller and communications-focused designs in industrial environments.

This device emphasizes integration and on-chip peripheral support—providing serial communications channels, DMA, timers, and DRAM controller interfaces—enabling compact system designs that require deterministic embedded processing and communications handling.

Key Features

• CPU Core: CPU32+ single 32-bit core at 25 MHz delivering deterministic embedded processing (CPU32+ architecture).
• Bus and Memory Support: Up to 32-bit data bus with dynamic sizing for 8- and 16-bit transfers and on-chip support for DRAM controllers; boot chip select options for 8-, 16- or 32-bit memory.
• Communications Processor Module (CPM): Integrated CPM with RISC controller and support for extensive serial channel operations including buffer descriptors and continuous mode transmission/reception.
• Serial Interfaces: Four Serial Communications Controllers (SCCs), two Serial Management Controllers (SMCs) and one SPI channel for multi-protocol serial connectivity; SCC1 supports optional 10 Mbps Ethernet on applicable variants.
• DMA and Timers: Two independent DMA controllers (IDMAs) with buffer chaining and auto-buffer modes; four general-purpose timers configurable as four 16-bit or two 32-bit timers.
• System Integration Module (SIM60): On-chip system features including bus monitor, double bus fault monitor, watchdog, periodic interrupt timer, clock synthesizer and hardware breakpoints.
• I/O and Voltage: 5 V I/O signaling and additional serial interfaces including SCC channels; graphics acceleration is not included.
• Package and Mounting: 240-pin FQFP package (240-FQFP, 32 × 32 mm) designed for surface-mount assembly.
• Operating Range and Qualification: Industrial temperature range from −40 °C to 85 °C; industrial qualification and RoHS compliant.

Typical Applications

• Embedded Communications Controllers: Leverages multiple SCCs, SMCs and CPM to handle protocol framing, buffering and serial offload in communication equipment.
• Industrial Control Systems: Industrial qualification and robust system integration features make it suitable for controller tasks requiring deterministic timing and external memory interfacing.
• Networked Embedded Devices: Optional 10 Mbps Ethernet support on an SCC channel and extensive serial peripherals support networking and fieldbus interfaces in embedded nodes.
• Compact Multi-Function Controllers: On-chip DMA, timers and system monitors enable consolidated designs that reduce external components for compact controller modules.

Unique Advantages

• Integrated Communications Subsystem: Built-in CPM plus multiple SCC/SMC/SPI channels reduce external peripheral requirements for protocol handling.
• Flexible Memory and Bus Options: 32-bit bus with dynamic sizing and boot chip select options simplify interfacing with a range of external memory types and boot strategies.
• Deterministic Embedded Performance: CPU32+ core and hardware breakpoints provide predictable processing behavior for real-time embedded tasks.
• Robust System Features On-Chip: SIM60 features such as watchdog, bus monitors and breakpoint logic support system reliability and easier fault diagnosis.
• Industrial Temperature and RoHS Compliance: Rated −40 °C to 85 °C and RoHS compliant for deployment in industrial applications with environmental and regulatory considerations.

Why Choose KMC68MH360CAI25L?

The KMC68MH360CAI25L positions itself as an integrated solution for embedded systems that demand serial communications capability, on-chip DMA and timers, and industrial operating range. As part of the MC68 series from NXP Semiconductors, it offers a balance of peripheral integration and predictable CPU32+ processing suited to communications-oriented and control-centric designs.

For engineers building compact, reliable controllers or networked embedded nodes, this device reduces board-level complexity by consolidating communications engines, DMA, timers and system monitoring into a single 240-pin surface-mount package, while meeting industrial temperature and RoHS requirements.
