SPC5200CBV400R2

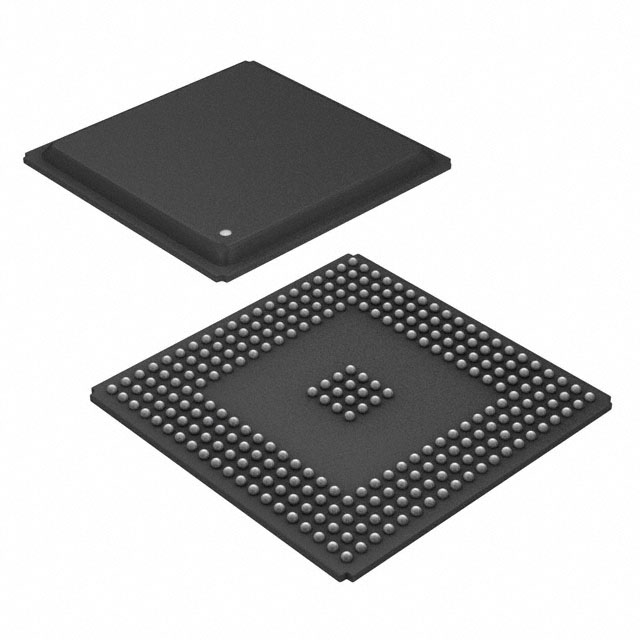

The SPC5200CBV400R2 is a PowerPC e300 microprocessor from the SPC5200 series by NXP Semiconductors. It is a single‑core, 32‑bit MPU running at 400 MHz, packaged in a 272‑pin PBGA (27×27) surface‑mount package and qualified for industrial use.

Targeted at embedded and industrial applications, this device integrates core processing performance with on‑chip memory controller support and multiple peripheral interfaces to simplify system design where deterministic processing and robust connectivity are needed.

Key Features

• Core PowerPC e300 architecture, single 32‑bit core operating at 400 MHz for deterministic embedded processing.
• Memory Support Built‑in controllers for DDR and SDRAM to support external system memory configurations.
• Connectivity Integrated 10/100 Mbps Ethernet (1) and two USB 1.1 ports for wired networking and peripheral connectivity; AC97 interface for audio codec integration.
• Package & Mounting Available in a 272‑PBGA (27×27) / 272‑BBGA package intended for surface‑mount assembly.
• Industrial Qualification Device is specified as Industrial qualification, suitable for industrial embedded deployments.
• Operating Temperature Rated for operation from −40 °C to 85 °C to accommodate a wide range of environmental conditions.
• Standards Compliance RoHS compliant, indicating adherence to lead‑free environmental requirements.
• Graphics No graphics acceleration; suitable for designs that do not require dedicated graphics processing.

Typical Applications

• Industrial Control — Real‑time control and supervision tasks in industrial embedded systems leveraging the 400 MHz PowerPC e300 core and industrial qualification.
• Networking Appliances — Small routers, gateways or networked controllers using the integrated 10/100 Mbps Ethernet interface.
• USB‑Enabled Embedded Devices — Devices requiring USB 1.1 connectivity for peripheral attachments or data transfer using the two on‑chip USB ports.
• Audio Interfaces and Codec Systems — Embedded audio applications interfacing to AC97 codecs for audio I/O.

Unique Advantages

• Integrated Connectivity: Combines Ethernet (10/100 Mbps), two USB 1.1 ports and AC97 to reduce external interface components.
• Memory Flexibility: DDR and SDRAM controller support enables a range of system memory configurations for cost or performance optimization.
• Industrial‑Grade Operation: Industrial qualification and a −40 °C to 85 °C operating range support deployment in demanding environments.
• Compact Surface‑Mount Package: 272‑pin PBGA (27×27) footprint supports high‑density board designs while maintaining robust connectivity.
• Standards Compliance: RoHS compliance supports lead‑free assembly and environmental requirements.

Why Choose SPC5200CBV400R2?

The SPC5200CBV400R2 delivers a balanced combination of single‑core PowerPC processing at 400 MHz, integrated memory controller support, and a suite of connectivity interfaces tailored for embedded and industrial systems. Its industrial qualification and extended temperature rating make it appropriate for designs that require reliable operation in varied environments.

Manufactured by NXP Semiconductors and offered within the SPC5200 series, this MPU is suited to engineers and procurement teams building compact, interface‑rich embedded products that prioritize deterministic processing, integrated I/O, and compliance with RoHS requirements.

Request a quote or submit an inquiry today to get pricing and availability for the SPC5200CBV400R2 and to discuss how it fits your embedded design requirements.
