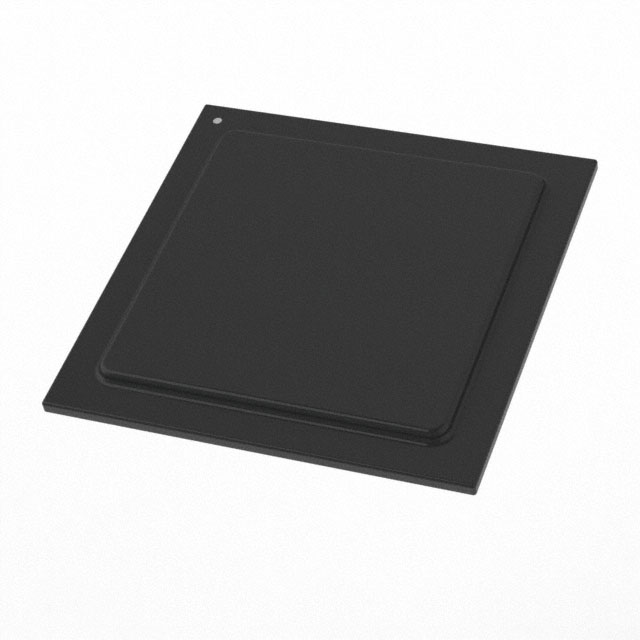

T4241NXN7TTB

The T4241NXN7TTB is a PowerPC e6500-based QorIQ T4 microprocessor configured with 24 cores running at 1.8 GHz in a 64-bit architecture. It is positioned for embedded applications requiring high parallel compute capacity, extensive networking connectivity and industrial-grade operation.

With multiple high-speed Ethernet ports, SATA and USB interfaces, and a comprehensive set of hardware security features, this device targets networking, storage gateway and industrial control designs that demand integrated I/O and robust security.

Key Features

• Core Architecture PowerPC e6500 core family with 24 cores at 1.8 GHz and 64-bit processing capability for parallel compute workloads.
• Memory Support Integrated controllers for DDR3 and DDR3L memory for system memory flexibility.
• High‑Speed Networking Multiple Ethernet interfaces including thirteen 1 Gbps ports and two 10 Gbps ports to support dense networking and packet processing tasks.
• Storage and USB Two SATA 3 Gbps interfaces and two USB 2.0 + PHY ports for storage subsystem and peripheral connectivity.
• Security Features On-chip Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection and Volatile Key Storage for hardware-level security functions.
• Additional Interfaces I2C support for system management and low-speed peripheral control.
• Package and Mounting 1932-FCPBGA (45×45) / 1932-BBGA FCBGA package, surface-mount mounting type suitable for compact board designs.
• Industrial Qualification and Temperature Industrial-qualified device rated for operation from −40 °C to 105 °C.

Typical Applications

• High‑density Networking Equipment Multi-core processing combined with multiple 10 Gbps and 1 Gbps Ethernet ports enables packet processing, switching and routing platforms.
• Industrial Control and Automation Industrial qualification and wide operating temperature range support deployment in factory automation and process-control systems.
• Storage Gateways and NAS Dual SATA 3 Gbps interfaces provide connectivity for networked storage and gateway appliances.
• Secure Communications Appliances Built‑in cryptography, secure boot and tamper detection assist in implementing hardware-backed secure communications and encryption functions.

Unique Advantages

• High compute density: 24 PowerPC e6500 cores at 1.8 GHz deliver substantial parallel processing capacity for throughput‑oriented workloads.
• Rich networking interfaces: Thirteen 1 Gbps and two 10 Gbps Ethernet ports provide flexible, high-bandwidth connectivity options on a single device.
• Integrated security primitives: A suite of hardware security features simplifies implementation of secure boot, key storage and cryptographic functions.
• Industrial‑grade robustness: Industrial qualification and −40 °C to 105 °C operating range support deployment in demanding environmental conditions.
• Flexible memory support: DDR3 and DDR3L controller support enables designers to choose memory configurations that match performance and power targets.
• Compact BGA package: 1932-FCPBGA (45×45) surface-mount package allows high integration density for space-constrained system boards.

Why Choose T4241NXN7TTB?

The T4241NXN7TTB combines a high core count PowerPC e6500 architecture with extensive networking, storage and security features in an industrial-qualified package. This positioning delivers a balance of performance, integration and environmental robustness suitable for embedded designs that require sustained throughput, hardware security and wide operating temperatures.

Designed for engineers working on networking appliances, storage gateways and industrial control systems, the part provides an integrated platform that reduces external components while delivering the interfaces and security primitives needed for reliable long-term deployments backed by NXP Semiconductors.

Request a quote or submit a product inquiry for T4241NXN7TTB to check availability, lead times and pricing for your design needs.
