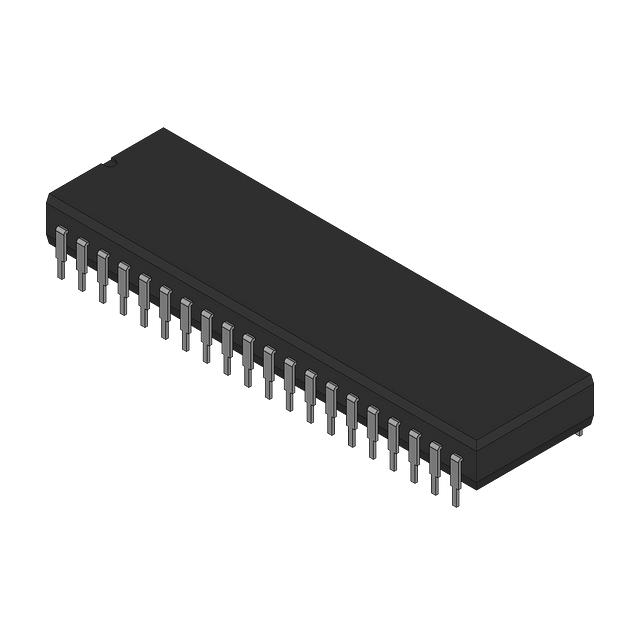

TD8088

The TD8088 is an Intel i8086-series microprocessor implementing a single 8088 core with an 8-bit external data bus and 5 MHz clock speed. It is supplied in a 40-pin ceramic DIP package and is targeted at embedded, through-hole applications requiring a commercial-grade processor.

Designed for systems that require a straightforward, single-core 8088 architecture, the TD8088 offers compatibility with external 8087 floating-point co-processors and includes EBI/EMI interfaces for system integration. The device is RoHS compliant and rated for commercial operating temperatures.

Key Features

• Core Processor  8088 core providing a single 1-core architecture with an 8-bit external bus.
• Clock Speed  5 MHz operating frequency suitable for legacy and low-to-moderate performance embedded tasks.
• Power  5 V I/O voltage compatible with common embedded system supply rails.
• Co‑processor Support  External 8087 FPU support enables hardware floating-point acceleration when paired with the appropriate co-processor.
• Interfaces  Built-in EBI/EMI interfaces to facilitate external memory and peripheral connections.
• Package & Mounting  40-pin CDIP package (40-CDIP) in through-hole form factor for soldered or socketed board mounting.
• Operating Range & Grade  Commercial grade device specified for 0 °C to 70 °C operation.
• Environmental Compliance  RoHS compliant for regulatory and manufacturing alignment.

Typical Applications

• Embedded Systems  Suitable for embedded designs requiring a single-core 8088 processor with an 8-bit bus and 5 MHz operation.
• Legacy Equipment Maintenance  Fit for repair or continued production of systems designed around the 8088 architecture and 40-pin through-hole packages.
• Development & Prototyping  Useful in development environments where through-hole 40-CDIP packaging and commercial-grade temperature range are required.

Unique Advantages

• Proven 8088 Architecture: Single-core 8088 design provides a clear, well-understood instruction set and system behavior for compatible applications.
• Through-Hole 40-CDIP Packaging: 40-pin CDIP enables easy socketing or soldered mounting for field-replaceable modules and legacy board designs.
• External FPU Compatibility: Support for an external 8087 co-processor allows designers to add hardware floating-point capability as needed.
• EBI/EMI Interfaces: Integrated external bus and memory interfaces simplify connection to external memories and peripherals.
• Commercial Temperature Rating: Specified 0 °C to 70 °C operation aligns with standard commercial embedded deployments.
• RoHS Compliant: Meets RoHS requirements to support environmentally compliant manufacturing processes.

Why Choose TD8088?

The TD8088 provides a straightforward, single-core 8088 solution in a through-hole 40-CDIP package, making it well suited for embedded and legacy applications that require a commercial-grade microprocessor with clear integration points. Its 5 MHz clock, 5 V I/O, and EBI/EMI interfaces allow designers to implement stable systems with optional floating-point capability via the external 8087 co-processor.

This device is ideal for teams maintaining or recreating designs based on the i8086 family who need a compact, through-hole packaged processor with RoHS compliance and a defined commercial operating range.

Request a quote or submit an inquiry to obtain pricing, availability, and ordering information for the TD8088.
