TG80960JS25

The TG80960JS25 is an Intel i960 microprocessor IC featuring a single 32-bit core running at 25 MHz. Designed for embedded applications, the device offers on-chip DRAM controller support and standard 3.3 V I/O for system integration.

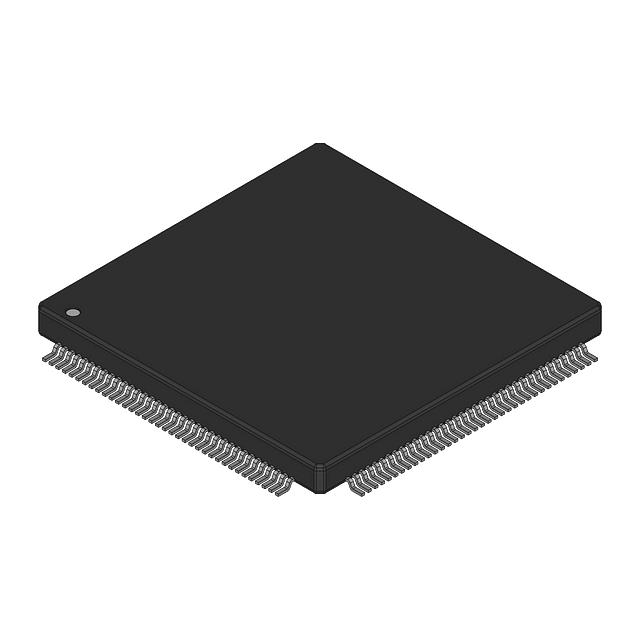

Packaged in a surface-mount 132-PQFP (132-QFP) case and rated for commercial operation, the TG80960JS25 is suited to embedded designs that require a compact, RoHS-compliant 32-bit processing solution with defined operating conditions.

Key Features

• Core — Single i960 32-bit core operating at 25 MHz, providing deterministic processing for embedded workloads.
• Memory Interface — Integrated DRAM controller to simplify external memory interfacing and system memory design.
• Power — 3.3 V I/O voltage domain for compatibility with common embedded logic levels and peripherals.
• Package & Mounting — Available in a 132-PQFP supplier device package (132-QFP package case) with surface-mount mounting type for PCB-level integration.
• Operating Range & Grade — Commercial grade device with an operating temperature range of 0 °C to 100 °C.
• Compliance — RoHS compliant for environmental regulatory alignment.
• Graphics — No graphics acceleration; optimized for control and processing tasks rather than graphics workloads.

Typical Applications

• Embedded Control Systems — Used as the processing element in embedded controllers where a 32-bit i960 core and DRAM support are required.
• Industrial Instrumentation — Suitable for instrumentation that benefits from a defined commercial temperature range and surface-mount packaging.
• Communications Equipment — Employed in communications and networking modules that interface with external memory and require 3.3 V I/O compatibility.

Unique Advantages

• Well-defined 32-bit processing: A single i960 core at 25 MHz provides predictable execution characteristics for embedded control tasks.
• On-chip DRAM controller: Simplifies memory subsystem design by reducing external controller requirements.
• Standard 3.3 V I/O: Facilitates integration with a wide range of peripheral devices and logic families.
• Compact surface-mount package: 132-PQFP (132-QFP) package supports high-density PCB layouts and automated assembly.
• RoHS compliant: Meets environmental material requirements for modern electronic product lifecycles.

Why Choose TG80960JS25?

The TG80960JS25 positions itself as a practical, commercial-grade embedded microprocessor offering a 32-bit i960 core, DRAM controller, and 3.3 V I/O in a compact 132-PQFP surface-mount package. Its defined operating range of 0 °C to 100 °C and RoHS compliance make it a solid choice for embedded system designs that require predictable performance and regulatory alignment.

This part is appropriate for engineers and procurement teams specifying a reliable Intel i960-based MPU for applications such as control systems, instrumentation, and communications modules where a single 32-bit core and external DRAM support are central design requirements.

Request a quote or submit an inquiry for pricing and availability of the TG80960JS25 to evaluate fit for your next embedded design.
