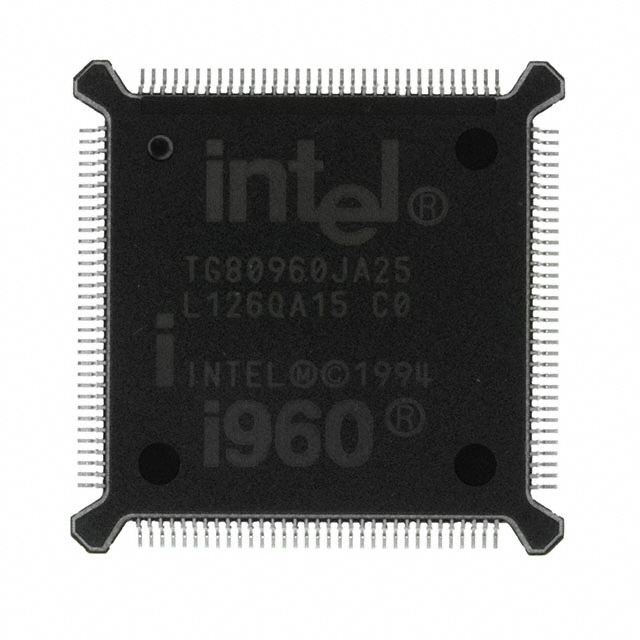

TG80960JA3V25

The TG80960JA3V25 is a single-core, 32-bit microprocessor based on the i960 core, manufactured by Intel for embedded applications. It operates at 25 MHz with 3.3 V I/O support and is supplied in a 132‑lead QFP surface-mount package.

Designed for commercial-grade embedded designs, the device provides a defined operating range of 0°C to 100°C and RoHS compliance, making it suitable for a range of board-level OEM and embedded system implementations.

Key Features

• Core and Architecture  Single i960 core with a 32‑bit datapath, suitable for embedded microprocessor tasks that require a dedicated 32‑bit processing element.
• Clock Speed  25 MHz operating frequency for predictable timing in embedded control and processing applications.
• Voltage and I/O  3.3 V I/O voltage compatibility to match common logic levels in modern embedded designs.
• Package & Mounting  132‑lead QFP (132‑QFP) in a surface-mount package for compact board-level integration and automated assembly.
• Commercial Grade & Temperature Range  Commercial grade device with an operating temperature range of 0°C to 100°C for standard industrial and commercial environments.
• Compliance  RoHS‑compliant to meet environmental requirements for lead‑free manufacturing.
• Graphics Acceleration  No graphics acceleration; focused on general embedded processing duties.

Typical Applications

• Embedded Controllers  Used as a dedicated 32‑bit processor in embedded control modules requiring a single-core solution and 3.3 V I/O.
• Board-Level OEM Designs  Integration into commercial electronic assemblies where a 132‑QFP surface-mount package supports compact PCB layouts and automated assembly.
• Industrial and Commercial Equipment  Suitable for commercial‑grade equipment operating within 0°C to 100°C that benefit from a defined single‑core 32‑bit microprocessor.

Unique Advantages

• Proven i960 Architecture:  Single 32‑bit i960 core provides a focused processing element for embedded application tasks.
• Predictable Timing:  25 MHz clock speed enables consistent timing characteristics for control and processing functions.
• Industry‑Standard I/O Voltage:  3.3 V I/O simplifies interfacing with common logic families and peripherals.
• Compact Surface‑Mount Package:  132‑lead QFP supports dense board layouts and automated assembly for volume production.
• Commercial Temperature Range:  Rated 0°C to 100°C for reliable operation across typical commercial environments.
• RoHS‑Compliant:  Meets environmental requirements for lead‑free manufacturing processes.

Why Choose TG80960JA3V25?

The TG80960JA3V25 delivers a straightforward, single‑core 32‑bit i960 solution for commercial embedded designs that require a 25 MHz operating point, 3.3 V I/O compatibility, and a 132‑QFP surface‑mount form factor. Its defined operating temperature range and RoHS compliance make it a practical choice for board‑level OEMs and embedded system developers seeking a reliable, manufacturable component from Intel.

This part is ideal for engineers specifying a compact, single‑core microprocessor for commercial embedded systems where predictable timing, standard I/O voltage, and surface‑mount packaging are priorities.

Request a quote or submit a request to evaluate TG80960JA3V25 for your next embedded design.
