TG80960JC66

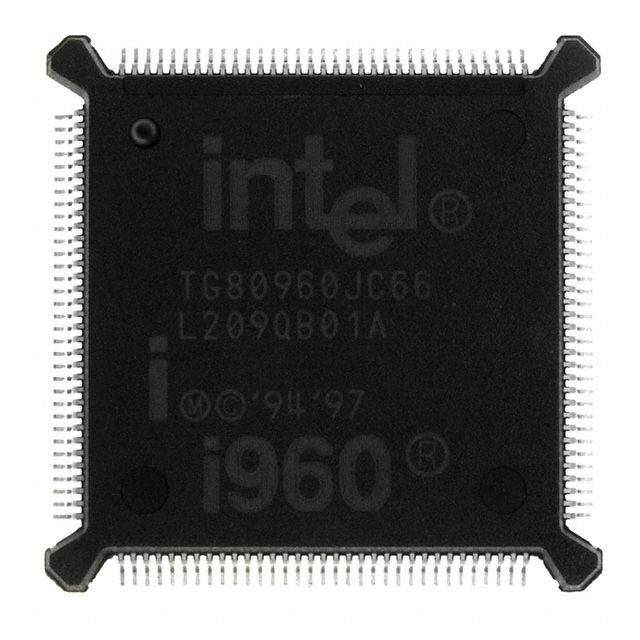

The TG80960JC66 is an Intel i960 microprocessor supplied in a 132-PQFP surface-mount package. It implements a single 32-bit i960 core running at 66 MHz with integrated DRAM controller support and 3.3 V I/O.

Built for embedded applications, this commercial-grade device combines mid-range processing performance with a compact 132-PQFP footprint and an operating temperature range of 0 °C to 100 °C for general embedded environments.

Key Features

• Core and Performance  Single i960 32-bit core operating at 66 MHz, providing deterministic processing for embedded tasks.
• Memory Support  Integrated DRAM controller to interface with external DRAM devices and streamline memory subsystem design.
• Power and I/O  3.3 V I/O voltage level compatible with common embedded bus and peripheral interfaces.
• Package and Mounting  132-PQFP (24.13×24.13 mm) surface-mount package with bumpered 132-BQFP package case option for compact board designs.
• Operating Range  Commercial-grade operating temperature from 0 °C to 100 °C for standard embedded environments.
• Graphics  No graphics acceleration, focused on general-purpose embedded processing tasks.
• Compliance  RoHS compliant.

Typical Applications

• Embedded control systems  Use the single 32-bit i960 core at 66 MHz for control and processing in embedded devices.
• DRAM-based designs  Systems that rely on external DRAM can take advantage of the integrated DRAM controller to simplify memory interfacing.
• Compact surface-mount boards  The 132-PQFP (24.13×24.13 mm) package supports dense PCB layouts and surface-mount assembly.

Unique Advantages

• Balanced 32-bit processing: Single i960 core at 66 MHz provides a predictable processing profile for embedded workloads.
• Integrated memory interface: DRAM controller reduces external glue logic for memory subsystems, simplifying design.
• Standard 3.3 V I/O: Ensures compatibility with common embedded peripherals and bus voltages.
• Compact PQFP package: 132-PQFP (24.13×24.13 mm) supports compact, high-density PCB implementations.
• Commercial operating range: Rated 0 °C to 100 °C for general-purpose embedded deployments.
• RoHS compliant: Meets RoHS requirements for materials compliance.

Why Choose TG80960JC66?

TG80960JC66 combines the Intel i960 architecture’s single 32-bit core at 66 MHz with an integrated DRAM controller and standard 3.3 V I/O, packaged in a compact 132-PQFP surface-mount footprint. Its commercial operating range and RoHS compliance make it suitable for a broad set of embedded designs that require a straightforward, deterministic processor solution.

This part is well suited to design teams building DRAM-backed, surface-mount embedded systems that need a clear feature set—core performance, memory interface, and board-level integration—provided by a recognized manufacturer.

Request a quote or submit an inquiry today to check availability and pricing for the TG80960JC66 for your next embedded design.
