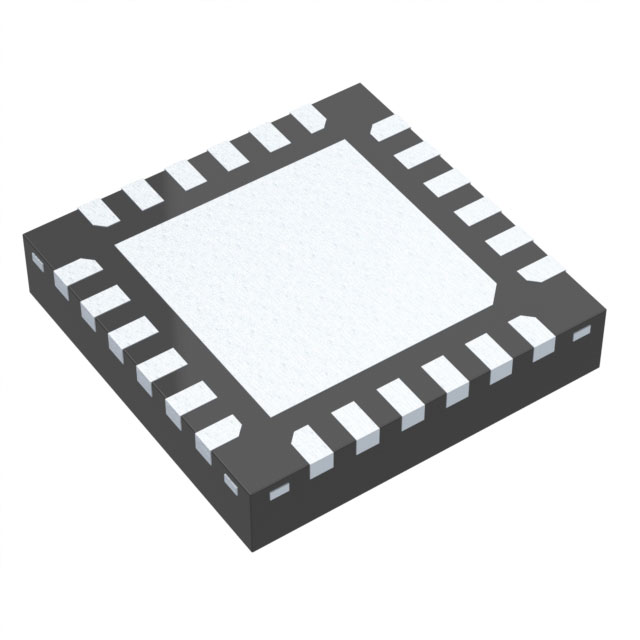

HMC321LP4TR
IC RF SWITCH SP8T 8GHZ 24QFN
| Part Description |
RF Switch IC General Purpose SP8T 8 GHz 50Ohm, 75Ohm 24-QFN (4x4) |
|---|---|
| Quantity | 184 Available (as of May 6, 2026) |
| Product Category | RF Switches |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 24-VFQFN Exposed Pad |
|---|---|
| Device Package | 24-QFN (4×4) |
| Mounting Method | Surface Mount |
| Voltage | 5V |
| Operating Temperature | -40°C ~ 85°C |
| RF Type: | General Purpose |
| Topology: | Absorptive |
| Circuit: | SP8T |
| Frequency Range: | 0Hz ~ 8GHz |
| Isolation: | 25dB |
| Insertion Loss: | 2.7dB |
| Test Frequency: | 8GHz |
| P1dB: | 23dBm |
| IIP3: | 40dBm |
| Impedance: | 50Ohm, 75Ohm |
| Voltage – Supply: | 5V |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
