XC7VX690T-2FFG1930I

The XC7VX690T-2FFG1930I is a Virtex®-7 XT field programmable gate array (FPGA) provided by AMD. It integrates a very large logic fabric with substantial on‑chip memory and a high I/O count in a ball‑grid array package, supplied as a surface‑mount device and rated for industrial temperature operation.

This device is targeted at designs that require large logic capacity, extensive embedded memory, and high pin count while operating across a wide supply voltage range and industrial temperature window.

Key Features

• Logic Capacity 693,120 logic elements for implementing large, complex programmable logic designs.
• Embedded Memory Approximately 54.19 Mbits of on‑chip RAM to support data buffering, large state machines, and memory‑intensive functions.
• I/O Count 1,000 user I/O pins to support dense interfacing and multiple high‑pin peripheral connections.

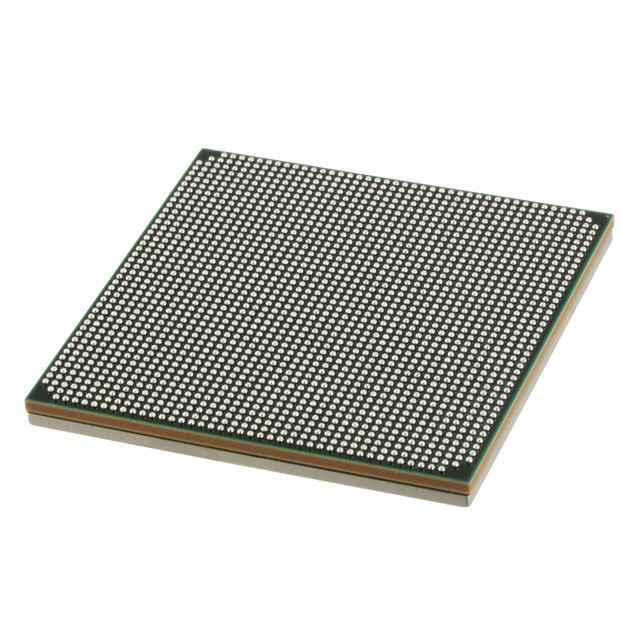

• Package and Mounting 1924‑BBGA FCBGA package; supplier device package listed as 1930‑FCBGA (45×45). Surface‑mount mounting type.
• Power Supply Range Core voltage supply range of 0.970 V to 1.03 V to match targeted power domains and system rails.
• Operating Temperature Industrial temperature grade with an operating range of −40 °C to 100 °C for robust operation in demanding environments.
• Environmental Compliance RoHS compliant.

Unique Advantages

• High logic density: 693,120 logic elements enable consolidation of complex functions into a single device, reducing board count and interconnect complexity.
• Substantial on‑chip memory: Approximately 54.19 Mbits of embedded RAM supports large buffering and state storage directly on the FPGA fabric.
• Extensive I/O capability: 1,000 I/Os accommodate multiple parallel interfaces and high‑pin subsystems without external multiplexing.
• Industrial temperature rating: −40 °C to 100 °C operation supports deployment in temperature‑challenging environments.
• Compact FCBGA packaging: 1924‑BBGA / 1930‑FCBGA (45×45) options provide a high‑density footprint for space‑constrained system boards.
• RoHS compliant: Meets regulatory requirements for lead‑free assembly and environmental considerations.

Why Choose XC7VX690T-2FFG1930I?

The XC7VX690T-2FFG1930I combines very large logic capacity, significant embedded memory, and a high I/O count in an industrial‑grade FCBGA package. Its voltage supply window and operating temperature range make it suitable for systems that require a robust, high‑density programmable solution while adhering to environmental compliance.

This part is suitable for designers and procurement teams looking for a single FPGA platform that delivers consolidated logic, memory resources, and extensive connectivity in a surface‑mount, industrial‑rated package from AMD.

Request a quote or submit an inquiry to receive pricing and availability information for the XC7VX690T-2FFG1930I.
