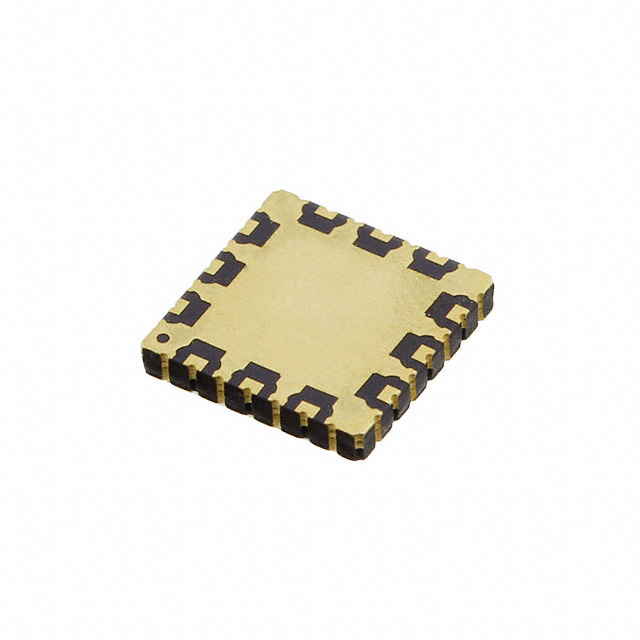

HMC344LH5
IC RF SWITCH SP4T 12GHZ 12CSMT
| Part Description |
RF Switch IC Radar SP4T 12 GHz 50Ohm 12-CSMT (5x5) |
|---|---|
| Quantity | 540 Available (as of May 5, 2026) |
| Product Category | RF Switches |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 12-LCQFN |
|---|---|
| Device Package | 12-CSMT (5×5) |
| Mounting Method | Surface Mount |
| Voltage | - |
| Operating Temperature | -40°C ~ 85°C |
| RF Type: | Radar |
| Topology: | Absorptive |
| Circuit: | SP4T |
| Frequency Range: | 0Hz ~ 12GHz |
| Isolation: | 40dB |
| Insertion Loss: | 2.1dB |
| Test Frequency: | 8GHz |
| P1dB: | 27dBm |
| IIP3: | 47dBm |
| Impedance: | 50Ohm |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
