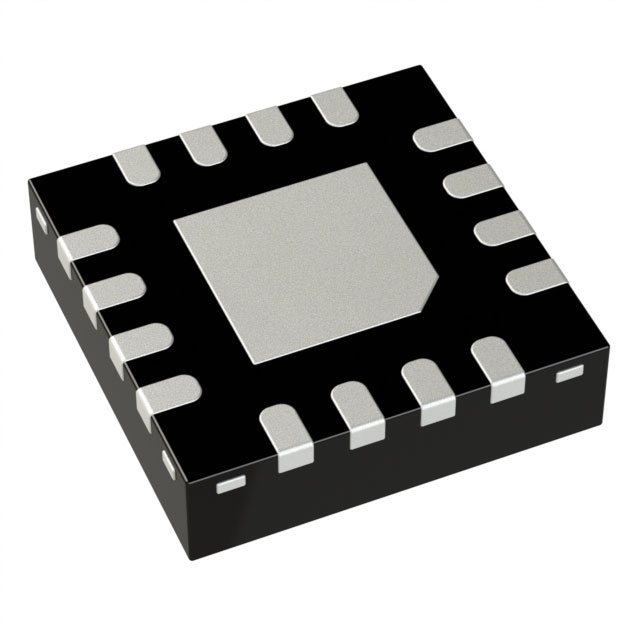

HMC547ALP3ETR
IC RF SWITCH SPDT 20GHZ 16QFN
| Part Description |
RF Switch IC VSAT SPDT 20 GHz 50Ohm 16-QFN (3x3) |
|---|---|
| Quantity | 1,236 Available (as of May 5, 2026) |
| Product Category | RF Switches |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 10 Weeks |
| Datasheet |
Specifications
| Part Package | 16-VFQFN Exposed Pad |
|---|---|
| Device Package | 16-QFN (3×3) |
| Mounting Method | Surface Mount |
| Voltage | - |
| Operating Temperature | -40°C ~ 85°C |
| RF Type: | VSAT |
| Topology: | Absorptive |
| Circuit: | SPDT |
| Frequency Range: | 0Hz ~ 20GHz |
| Isolation: | 38dB |
| Insertion Loss: | 2dB |
| Test Frequency: | 20GHz |
| P1dB: | 23dBm |
| IIP3: | 45dBm (min) |
| Impedance: | 50Ohm |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
