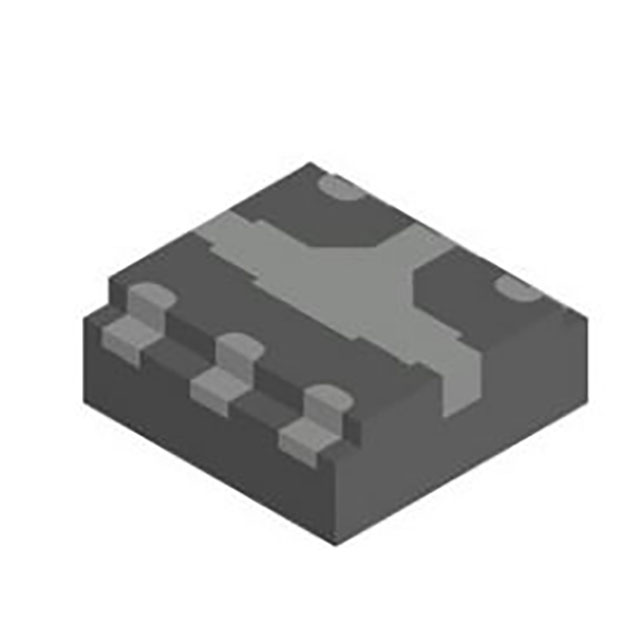

NSG1001MXTAG
IC RF SWITCH SPDT 8.5GHZ 6DFN
| Part Description |
RF Switch IC 802.11a/b/g/n/ac/ax, Bluetooth, LTE, WLAN SPDT 6-DFN (1x1) |
|---|---|
| Quantity | 1,443 Available (as of May 5, 2026) |
| Product Category | RF Switches |
|---|---|
| Manufacturer | onsemi |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 26 Weeks |
| Datasheet |
Specifications
| Part Package | 6-PowerXFDFN |
|---|---|
| Device Package | 6-DFN (1×1) |
| Mounting Method | Surface Mount, Wettable Flank |
| Voltage | - |
| Operating Temperature | -40°C ~ 125°C |
| RF Type: | 802.11a/b/g/n/ac/ax, Bluetooth, LTE, WLAN |
| Circuit: | SPDT |
| Frequency Range: | 100MHz ~ 8.5GHz |
| Isolation: | 20dB |
| Insertion Loss: | 0.65dB |
| Test Frequency: | 8.5GHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
