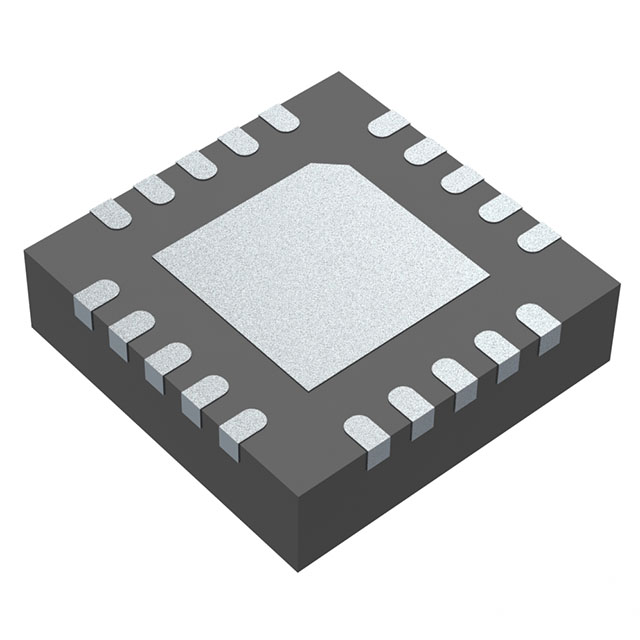

SKY13562-670LF
RF SWITCH ICS 2.5X2.5 SP10T DUAL
| Part Description |
RF Switch IC 2G/3G/4G, CDMA2000, Cellular, EDGE, GSM, LTE, TD-SCDMA SP10T 50Ohm 20-QFN (2.5x2.5) |
|---|---|
| Quantity | 989 Available (as of May 6, 2026) |
| Product Category | RF Switches |
|---|---|
| Manufacturer | Skyworks Solutions Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 20 Weeks |
| Datasheet |
Specifications
| Part Package | 20-WFQFN Exposed Pad |
|---|---|
| Device Package | 20-QFN (2.5×2.5) |
| Mounting Method | Surface Mount |
| Voltage | 2.5V ~ 4.8V |
| Operating Temperature | -30°C ~ 90°C |
| RF Type: | 2G/3G/4G, CDMA2000, Cellular, EDGE, GSM, LTE, TD-SCDMA |
| Circuit: | SP10T |
| Frequency Range: | 400MHz ~ 2.7GHz |
| Isolation: | 20dB |
| Insertion Loss: | 1.25dB |
| Test Frequency: | 2.69GHz |
| Features: | DC Blocked |
| Impedance: | 50Ohm |
| Voltage – Supply: | 2.5V ~ 4.8V |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | N/A |
| HTS Code | N/A |
