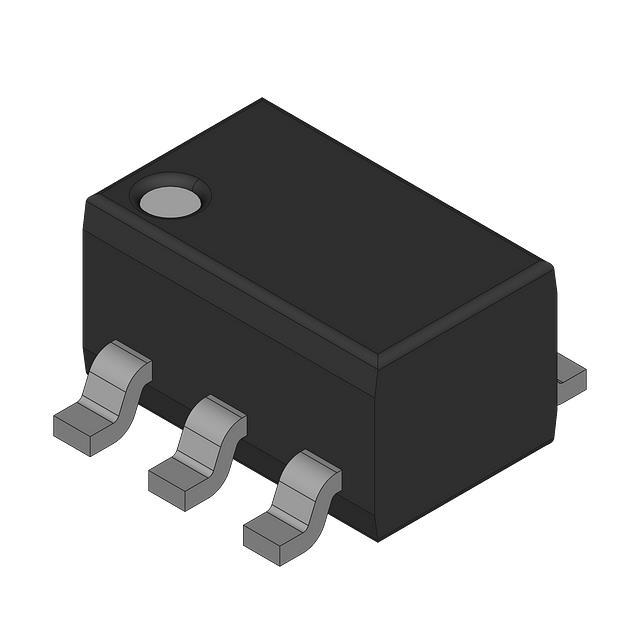

UPG2409TB-E4-A
IC RF SWITCH SPDT 3.8GHZ 6-SMINI
| Part Description |
RF Switch IC 802.11b/g/n SPDT 3.8 GHz 50Ohm 6-SuperMiniMold |
|---|---|
| Quantity | 1,919 Available (as of May 6, 2026) |
| Product Category | RF Switches |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 6-TSSOP, SC-88, SOT-363 |
|---|---|
| Device Package | 6-SuperMiniMold |
| Voltage | - |
| Operating Temperature | -45°C ~ 85°C |
| RF Type: | 802.11b/g/n |
| Topology: | Reflective |
| Circuit: | SPDT |
| Frequency Range: | 500MHz ~ 3.8GHz |
| Isolation: | 19dB |
| Insertion Loss: | 0.6dB |
| Test Frequency: | 3.8GHz |
| P1dB: | 37dBm |
| IIP3: | 60dBm |
| Impedance: | 50Ohm |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | N/A |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
