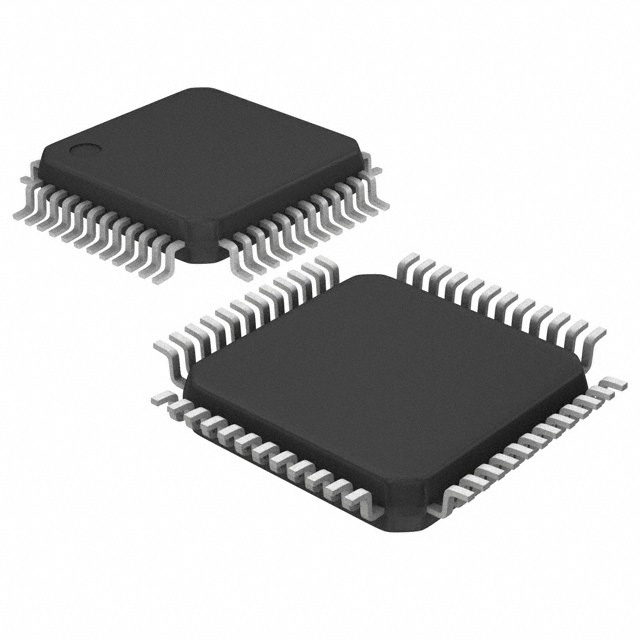

ADF7030-1BSTZN
IC RF TXRX+MCU 802.15.4 48LQFP
| Part Description |
IC RF TxRx + MCU 802.15.4 169MHz, 426MHz ~ 470MHz, 863MHz ~ 960MHz 48-LQFP |
|---|---|
| Quantity | 612 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 10 Weeks |
| Datasheet |
Specifications
| Part Package | 48-LQFP |
|---|---|
| Device Package | 48-LQFP (7×7) |
| Mounting Method | Surface Mount |
| Voltage | 2.2V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx + MCU |
| RF Family/Standard: | 802.15.4 |
| Modulation: | 2FSK, 2GFSK, 4FSK, 4GFSK |
| Frequency: | 169MHz, 426MHz ~ 470MHz, 863MHz ~ 960MHz |
| Data Rate (Max): | 360kbps |
| Power – Output: | 17dBm |
| Sensitivity: | -134dBm |
| Serial Interfaces: | SPI |
| GPIO: | 8 |
| Voltage – Supply: | 2.2V ~ 3.6V |
| Current – Receiving: | 25mA |
| Current – Transmitting: | 65mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 5A992C |
| HTS Code | 8542.39.0001 |
