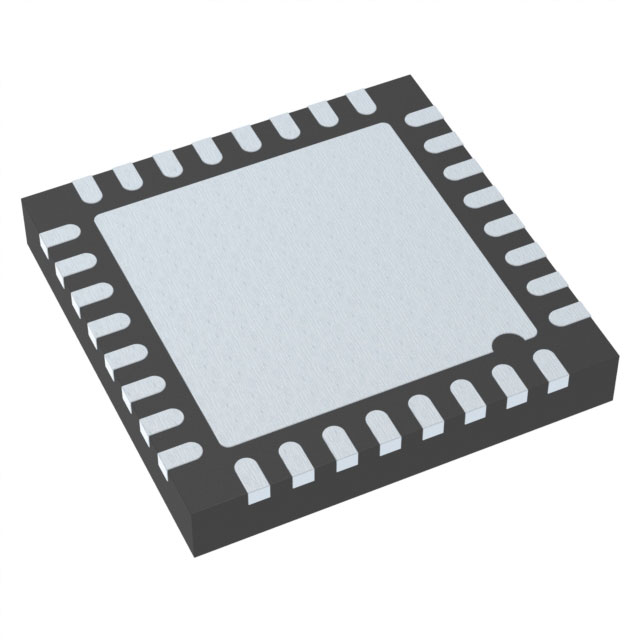

ADF7241BCPZ-RL7
IC RF TXRX+MCU 802.15.4 32WFQFN
| Part Description |
IC RF TxRx + MCU 802.15.4 2.4GHz 32-WFQFN Exposed Pad, CSP |
|---|---|
| Quantity | 501 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 10 Weeks |
| Datasheet |
Specifications
| Part Package | 32-WFQFN Exposed Pad, CSP |
|---|---|
| Device Package | 32-LFCSP (5×5) |
| Mounting Method | Surface Mount |
| Voltage | 1.8V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx + MCU |
| RF Family/Standard: | 802.15.4 |
| Modulation: | DSSS, O-QPSK |
| Frequency: | 2.4GHz |
| Data Rate (Max): | 250kbps |
| Power – Output: | 4.8dBm |
| Sensitivity: | -95dBm |
| Memory Size: | 4kB ROM, 2.5kB RAM |
| Serial Interfaces: | SPI |
| GPIO: | 7 |
| Voltage – Supply: | 1.8V ~ 3.6V |
| Current – Receiving: | 19mA |
| Current – Transmitting: | 16.5mA ~ 25mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 5A992C |
| HTS Code | 8542.39.0001 |
