ADR7023-JBCPZ-RL
IC RF TXRX ISM<1GHZ 32WFQFN
| Part Description |
IC RF TxRx Only General ISM < 1GHz 902MHz ~ 958MHz 32-WFQFN Exposed Pad, CSP |
|---|---|
| Quantity | 1,109 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
Specifications

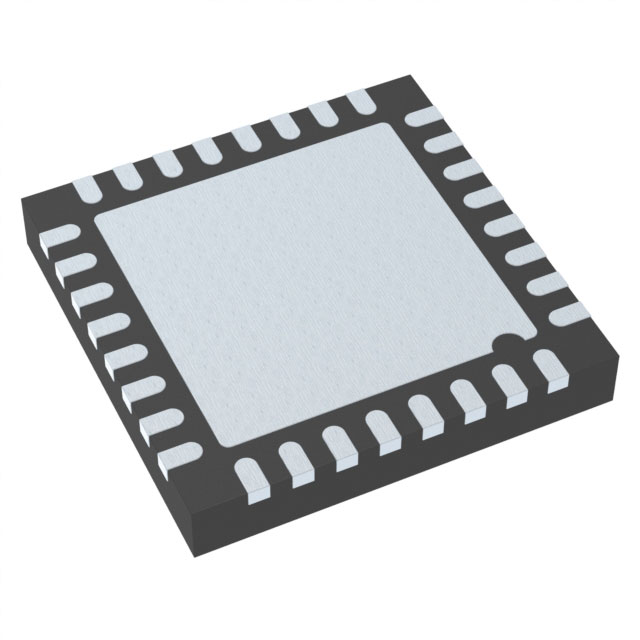

| Part Package | 32-WFQFN Exposed Pad, CSP |
|---|---|
| Device Package | 32-LFCSP (5×5) |
| Mounting Method | Surface Mount |
| Voltage | 2.2V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx Only |
| RF Family/Standard: | General ISM < 1GHz |
| Modulation: | FSK, GFSK, GMSK, MSK |
| Frequency: | 902MHz ~ 958MHz |
| Data Rate (Max): | 300kbps |
| Power – Output: | 13.5dBm |
| Sensitivity: | -116dBm |
| Voltage – Supply: | 2.2V ~ 3.6V |
| Current – Receiving: | 12.8mA |
| Current – Transmitting: | 32.1mA |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | OBSOLETE |
| HTS Code | 0000.00.0000 |
