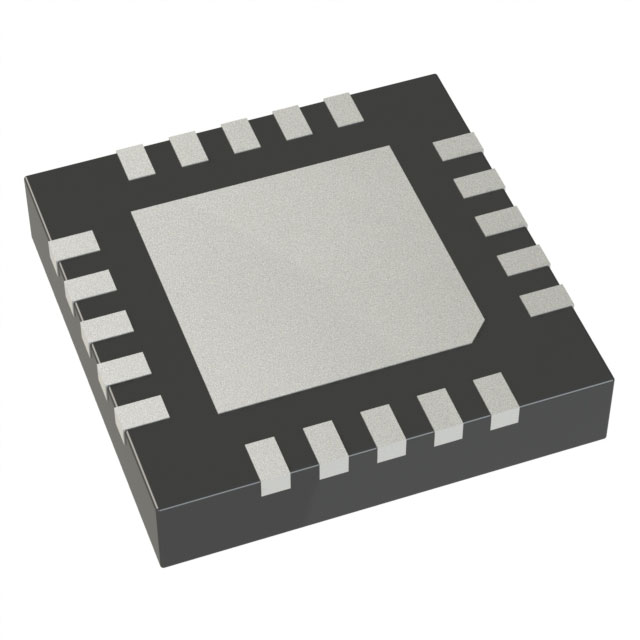

AX5243-1-TW30
IC RF TXRX ISM<1GHZ 20VFQFN
| Part Description |
IC RF TxRx Only General ISM < 1GHz 27MHz ~ 1.05GHz 20-VFQFN Exposed Pad |
|---|---|
| Quantity | 1,498 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | onsemi |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
Specifications
| Part Package | 20-VFQFN Exposed Pad |
|---|---|
| Device Package | 20-QFN (4×4) |
| Mounting Method | Surface Mount |
| Voltage | 1.8V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx Only |
| RF Family/Standard: | General ISM < 1GHz |
| Modulation: | 4FSK, ASK, FSK, GFSK, GMSK, MSK, PSK |
| Frequency: | 27MHz ~ 1.05GHz |
| Data Rate (Max): | 125kbps |
| Power – Output: | 16dBm (Max) |
| Sensitivity: | -137dBm |
| Serial Interfaces: | SPI |
| Voltage – Supply: | 1.8V ~ 3.6V |
| Current – Receiving: | 6.5mA ~ 11mA |
| Current – Transmitting: | 48mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | 5A991B |
| HTS Code | 8542.39.0001 |
