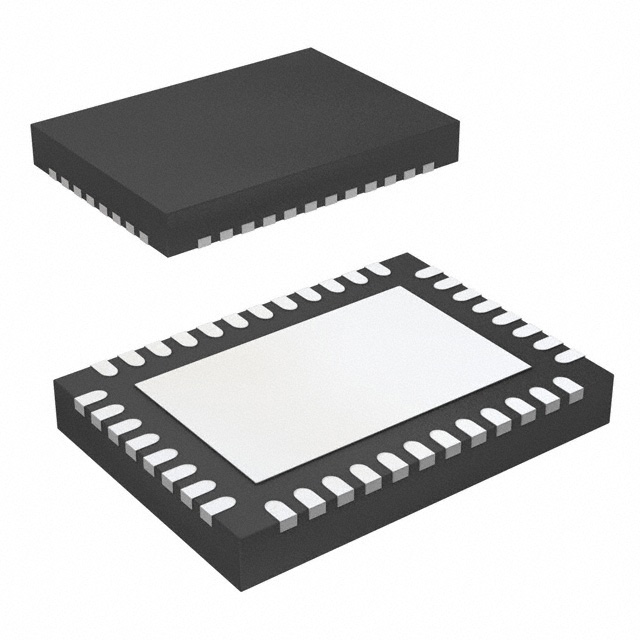

AX8052F131-2-TB05
RF TX IC ISM 400-470MHZ 40VFQFN
| Part Description |
IC RF TxRx + MCU 802.15.4, General ISM < 1GHz Zigbee® 400MHz ~ 470MHz, 800MHz ~ 940MHz 40-VFQFN Exposed Pad |
|---|---|
| Quantity | 764 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | onsemi |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 40-VFQFN Exposed Pad |
|---|---|
| Device Package | 40-QFN (7×5) |
| Mounting Method | Surface Mount |
| Voltage | 2.2V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx + MCU |
| RF Family/Standard: | 802.15.4, General ISM < 1GHz |
| Protocol: | Zigbee® |
| Modulation: | 4FSK, ASK, FSK, GFSK, MSK, O-QPSK, PSK |
| Frequency: | 400MHz ~ 470MHz, 800MHz ~ 940MHz |
| Data Rate (Max): | 2Mbps |
| Power – Output: | 16dBm |
| Sensitivity: | -116dBm |
| Memory Size: | 64kB Flash, 8.25kB SRAM |
| Serial Interfaces: | SPI, UART |
| GPIO: | 21 |
| Voltage – Supply: | 2.2V ~ 3.6V |
| Current – Transmitting: | 13mA ~ 45mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | 5A992C |
| HTS Code | 8542.31.0001 |
