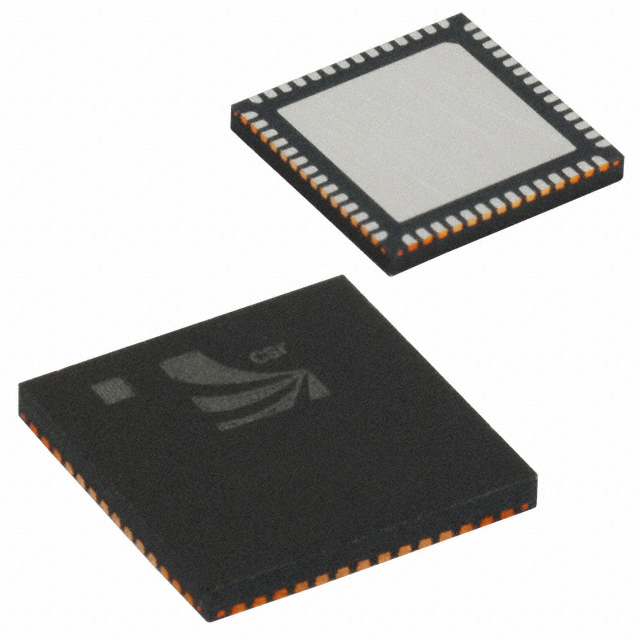

CSR1011A05-IQQA-R
IC RF TXRX+MCU BLUETOOTH 56VFQFN
| Part Description |
IC RF TxRx + MCU Bluetooth Bluetooth v4.0 2.4GHz 56-VFQFN Exposed Pad |
|---|---|
| Quantity | 458 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | Qualcomm |
| Manufacturing Status | Not For New Designs |
| Manufacturer Standard Lead Time | 28 Weeks |
| Datasheet |
Specifications
| Part Package | 56-VFQFN Exposed Pad |
|---|---|
| Device Package | 56-QFN (8×8) |
| Mounting Method | Surface Mount |
| Voltage | 1.2V ~ 3.6V |
| Operating Temperature | -30°C ~ 85°C |
| Type: | TxRx + MCU |
| RF Family/Standard: | Bluetooth |
| Protocol: | Bluetooth v4.0 |
| Frequency: | 2.4GHz |
| Data Rate (Max): | 3.69Mbaud |
| Power – Output: | 9dBm |
| Sensitivity: | -93dBm |
| Memory Size: | 64kB RAM, 64kB ROM |
| Serial Interfaces: | I2C, SPI, UART |
| GPIO: | 35 |
| Voltage – Supply: | 1.2V ~ 3.6V |
| Current – Receiving: | 20mA |
| Current – Transmitting: | 18mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 5A992C |
| HTS Code | 8542.39.0001 |
