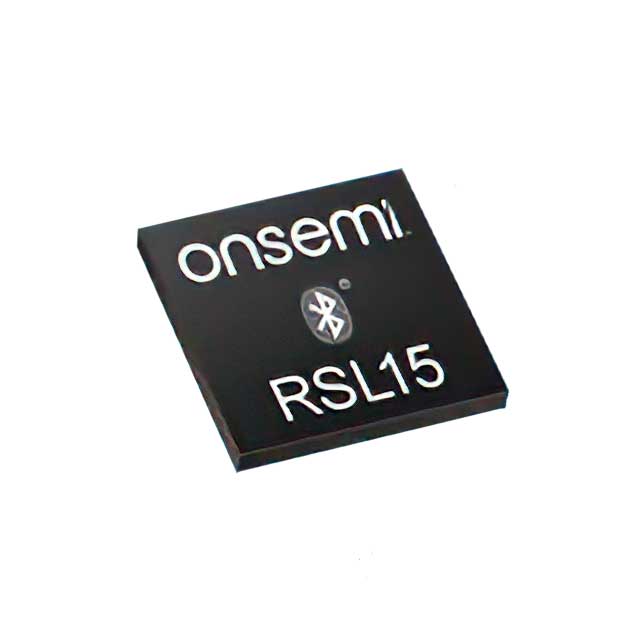

NCH-RSL15-284-101Q40-ACG
RSL15 QFN 284KB
| Part Description |
IC RF TxRx + MCU Bluetooth Bluetooth v5.2 2.4GHz 40-VFQFN Exposed Pad |
|---|---|
| Quantity | 1,295 Available (as of May 6, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | onsemi |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 45 Weeks |
| Datasheet |
Specifications
| Part Package | 40-VFQFN Exposed Pad |
|---|---|
| Device Package | 40-QFN (5×5) |
| Mounting Method | Surface Mount |
| Voltage | 1.2V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx + MCU |
| RF Family/Standard: | Bluetooth |
| Protocol: | Bluetooth v5.2 |
| Modulation: | 4-FSK, GFSK, MSK, O-QPSK |
| Frequency: | 2.4GHz |
| Data Rate (Max): | 2Mbps |
| Power – Output: | 6dBm |
| Sensitivity: | -102dBm |
| Memory Size: | 284kB Flash, 80kB RAM |
| Serial Interfaces: | I2C, PCM, PWM, SPI, UART |
| GPIO: | 15 |
| Voltage – Supply: | 1.2V ~ 3.6V |
| Current – Receiving: | 2.7mA ~ 6.7mA |
| Current – Transmitting: | 4.3mA ~ 24.1mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 5A991B |
| HTS Code | 8542.31.0001 |
